Hitema - Model ISV Series -Air-Cooled Liquid Chillers with Axial Fans

SHARE

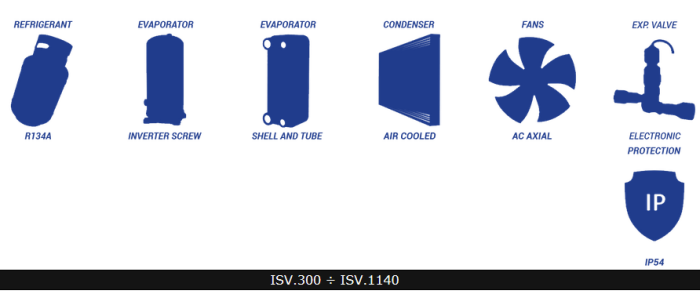

Standard Configuration: Compressors: VSD Screw. Condenser: Air-Cooled, with copper tubes and aluminum finned core. Evaporator: Shell & Tube. Expansion Valve: Electronic. Fans: AC axial. Protection Rating: IP54. Refrigerant: R134a. R134a; R513A and R1234ze. Cooling Capacity Renge 300kW ÷ 1390kW.

Most popular related searches
air cooled liquid chiller with axial fan
air cooled liquid chiller
axial fan
screw chiller
air cooled chiller
air cooled condenser
coring tube
  • High cooling capabilities with a wide range of possible applications
  • Integrated hydraulic module with tank as an optional (inverter pumps on request)
  • AC axial with Electronic fan speed control (cut-phase): EC fans on request
  • Inverter driven compressor possibility for extreme efficiency
  • Adiabatic and Free-cooling design is possible
  • Advanced control
