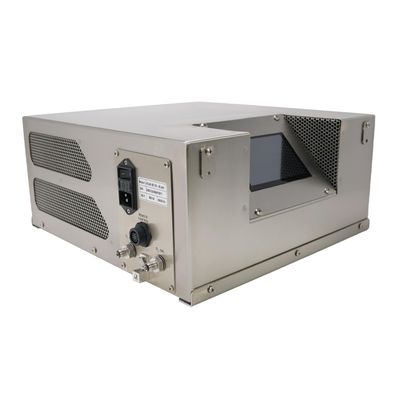

Absolute Ozone - Model Atlas 80 (80 G/H) -Air-Cooled Ozone Generator
Absolute Ozone® Generators are a quantum leap in Ozone technology. Due to specific elegant design, utilizing Microfluidic platform technology, and excellent durability, all air-Cooled Absolute Ozone® generators reliably provide ultra-pure, highly concentrated ozone for a wide variety of special applications. The performance is unequaled in the industry, with the capability of reliably producing high concentration ozone up to 12% by weight.
- Produces ozone from oxygen
- **PCOP system on board
- Remote Control Safety Shutoff
- Easy to install and maintain
- Low operating cost

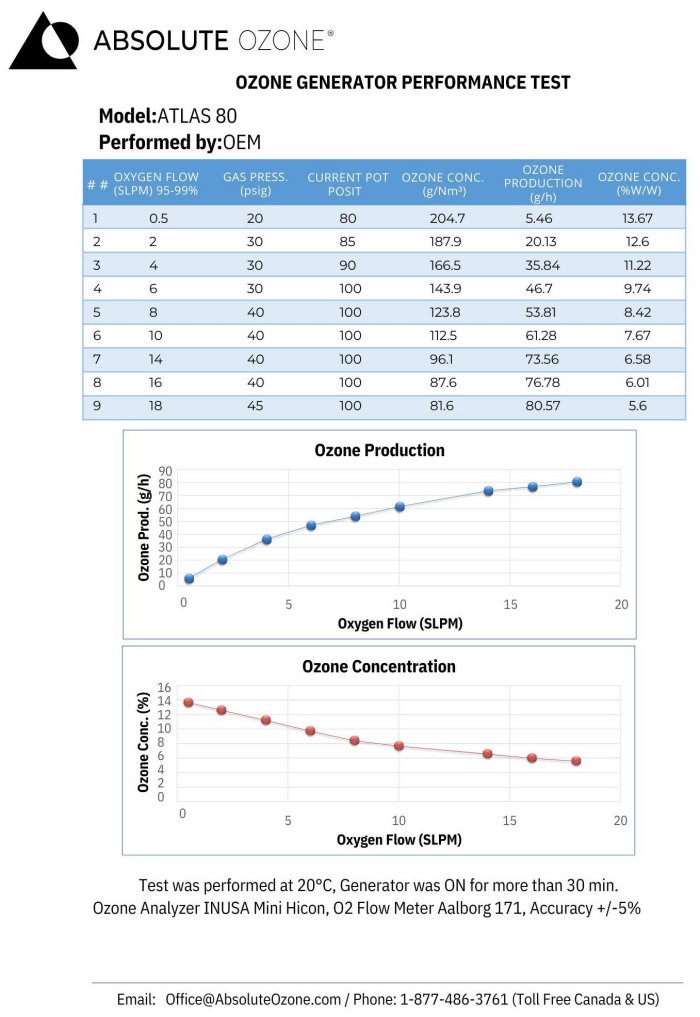

Product Characteristics*
- Ozone Production: 80 g/h
- Nominal Working Pressure: 25 psig (20-100 psig optional, see "Info & Prices" for details)
- Concentration (% by weight O3): 5 -12%
- Gas flow rate: 0.1 - 20 slpm
For best results with Absolute Ozone generators, we recommend using AirSep Oxygen concentrators. AirSep offers completely self-contained oxygen generators. Equipped with air compressors, these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure.

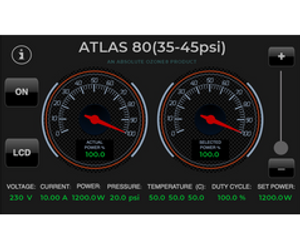

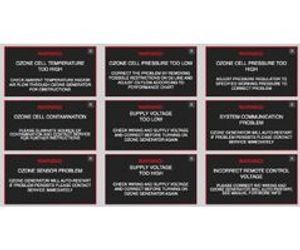

Introducing the first Smart On-Board Control & Diagnostics System included on all Absolute Ozone | ozone generators. This new technology delivers prompts on the display which allows the operator the ease and convenience to monitor most operating parameters including temperature, pressure, voltage, and more all on the convenience of a touch-screen 5” LCD display. Moreover, the control system is designed to maintain constant ozone production during voltage fluctuations (within range), adjust power automatically to accommodate for different or fluctuating gas pressures, automatically lower power if operating in hot ambient temperature, and more!
The Control Panel LCD screen displays the following parameters:
Selected power setting %, so you will be able to see on the screen power selected by the remote control or slider
Actual system power (% & Watt)
The system voltage (V)
The System Current (Amp)
Temperature inside the ozone cell
The LCD screen will allow touch to switch the generator on and off and to adjust desired power by moving the slider on the screen with your finger up or down
All parts and components used in Absolute Ozone | Ozone generators have been designed to work for 15-20 years and do not require any repairs or replacements, saving a substantial amount of money over that period of time and offering the lowest TCO (Total Cost of Ownership) in the industry. Leak-proof construction tested at up to 150 PSIG, corrosion-resistant stainless steel or aluminum enclosure, highest quality components, and materials used, further enhance reliability. Result: No downtime, No hidden costs.
5-Year Warranty - The Only Performance Guarantee in the Industry
5 Years Parts and Labour Warranty + The Only Performance Guarantee in the Industry*. We are confident that Absolute Ozone generators will provide great performance and reliability for many years of service saving you money on repairs and downtime.
‘Right on Spec Warranty’ – “If in an unlikely event, a product that we send you doesn’t meet or exceed our published specifications, we’ll send you one that does, or refund your money if we can’t.
