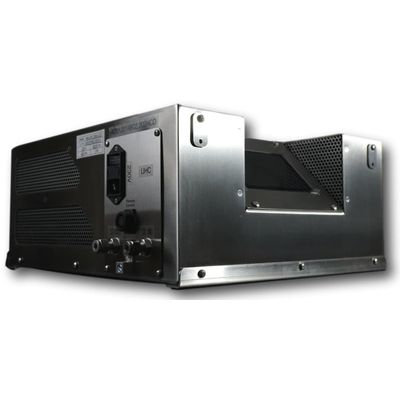

Absolute Ozone - Model Atlas 100 (100 G/H) -Air-Cooled Ozone Generator
Absolute Ozone® Generators are a quantum leap in Ozone technology. Due to specific elegant design, utilizing Microfluidic platform technology, and excellent durability, all air-Cooled Absolute Ozone® generators reliably provide ultra-pure, highly concentrated ozone for a wide variety of special applications. The performance is unequaled in the industry, with the capability of reliably producing high concentration ozone up to 15% by weight.
- Produces ozone from oxygen
- **PCOP system on board
- Remote Control Safety Shutoff
- Easy to install and maintain
- Low operating cost
Product Characteristics*
- Ozone Production: 100 g/h
- Nominal Working Pressure: 25 psig (25-100 psig optional, see "Info & Prices" for details)
- Concentration (% by weight O3): 5 -15%
- Gas flow rate: 0.1 - 25 slpm
Ambient Operating Conditions
- Locate the Ozone Generator in a well-ventilated area that is protected from weather elements
Control Power Requirements
- 208 V ~ ±3%, 50/60 Hz, 3 Phase, 5.0 A
- Maximum Power Consumption: 950 W
Physical Connections
- Oxygen Inlet: 0.25-inch Swagelok
- Ozone Gas Piping Outlet: 0.25-inch SS Swagelok Type.
Materials and Construction
- Enclosure: Brushed Stainless Steel/Aluminum
- High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
- O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass
Dimensions and Weight
- Enclosure Dimensions: 7-inch height x 14-inch width x 15-inch depth
- Generator Weight: 32 lbs.
- Shipping Weight: 38 lbs
Certifications and Approvals
- CSA - available as an option
Reliability, Performance and Quality Backed By 5 Years Warranty!

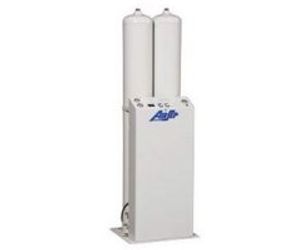

For best results with Absolute Ozone generators, we recommend using AirSep Oxygen concentrators. AirSep offers completely self-contained oxygen generators. Equipped with air compressors, these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure.
Airsep AS-D
We designed the ATLAS to be not only a dominant force in the performance division but to be more functional and intuitive than ever before. Each component inside the ATLAS has been meticulously designed to get the most out of an impressively elegant and compact enclosure.

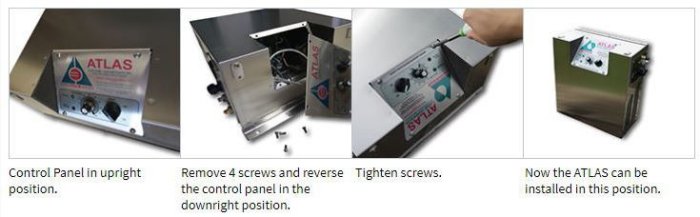

Reversible Universal Control Panel
We had to strive for efficiency in every detail, right down to how it connects and mounts. So we contributed to a new reversible universal control panel. Designed to efficiently accommodate installing the ATLAS in an upright or downright position.

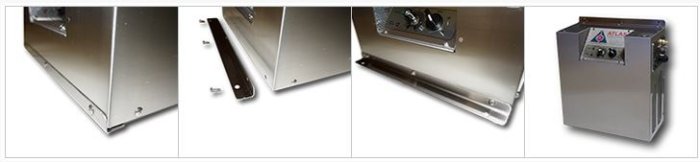

Every Absolute Ozone® ozone generator comes equipped with mounting flanges that can be reversed to provide you with the liberty to install the ATLAS in a downright position or against a wall for improved accessibility.

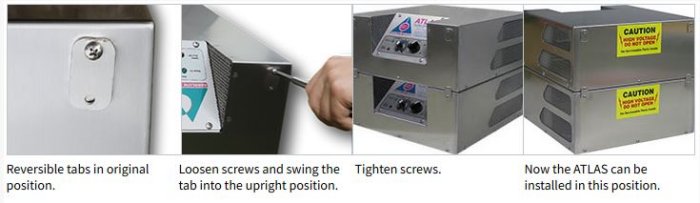

Every Absolute Ozone® ozone generator comes equipped with attachment tabs that can be reversed to provide you with the liberty to install the ATLAS one on top of another in a rack mount formation but without requiring a rack.
