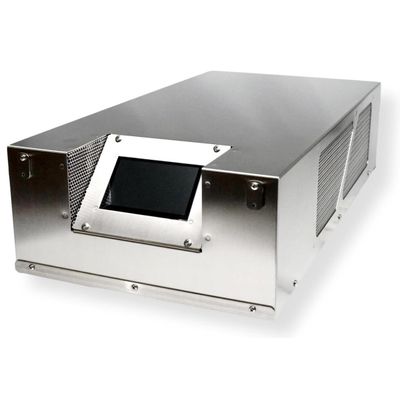

Absolute Ozone - Model Magnum 160 (160 G/H) -Air-Cooled Ozone Generator
Absolute Ozone® Generators are a quantum leap in Ozone technology. Due to specific elegant design, utilizing Microfluidic platform technology and excellent durability, all air-Cooled Absolute Ozone® generators reliably provide ultra pure, highly concentrated ozone for a wide variety of special application. The performance is unequalled in the industry, with the capability of reliably producing high concentration ozone up to 22% by weight.
- Produces ozone from oxygen
- **PCOP system on board
- Remote Control Safety Shutoff
- Easy to install and maintain
- Low operating cost
- Ozone Production: 8.5 ppd (160 g/h)
- Max. Ozone Production: Up to 9.5 ppd (180 g/h)
- **Standard Working Pressure: 40 psig (30-100 psig optional, see "Info & Prices" for details)
- Concentration (% by weight O3): 5 -12%
- Gas flow rate: 0.1 - 50 slpm
Ambient Operating Conditions
- Locate the Ozone Generator in a well-ventilated area that is protected from weather elements
Control Power Requirements
- 208/210/220/230 VAC ~ ±3%, 50/60 Hz, 3 Phase, 8.0 A
- Maximum Power Consumption: 1,600W
Physical Connections
- Oxygen Inlet: 3/8" Swagelok
- Ozone Gas Piping Outlet: 3/8" SS Swagelok
Materials and Construction
- Enclosure: Brushed Stainless Steel
- High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
- O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass
Dimensions and Weight
- Enclosure dimensions: 7-inch height x 14-inch width x 26.5-inch depth
- Generator Weight: 70 lbs.
Certifications and Approvals
- CSA - available as an option
Reliability, Performance and Quality Backed By 5 Years Warranty!
For best results with Absolute Ozone generators, we recommend using AirSep Oxygen concentrators. AirSep offers completely self-contained oxygen generators. Equipped with air compressors, these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure.
