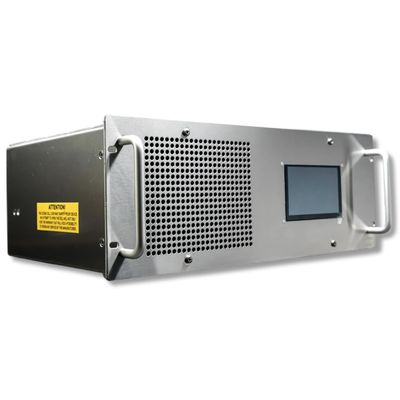

Absolute Ozone Titan - Model 100 (100 G/H) -Air-Cooled Ozone Generator (Rackmount)

• Produces ozone from oxygen
• **PCOP system on board
• Remote Control Safety Shutoff
• Easy to install and maintain
• Low operating cost

Product Characteristics*

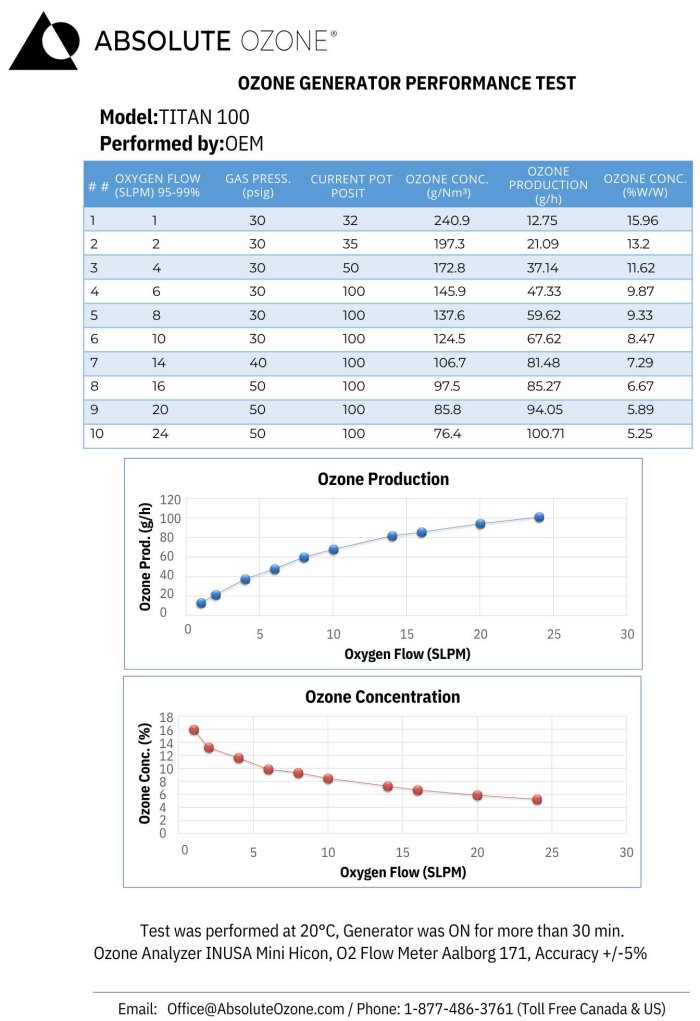

• Ozone Production: 5.3 ppd (100 g/h)
• Max. Ozone Production: Up to 6.0 ppd (113 g/h)**
• Nominal Working Pressure: 25 psig (25-100 psig optional, see "Info & Prices" for details)
• Concentration (% by weight O3): 5 -12%
• Gas flow rate: 0.1 - 25 slpm

Ambient Operating Conditions

• Locate the Ozone Generator in a well-ventilated area that is protected from weather elements

Control Power Requirements

• 120 V ~ ±3%, 50/60 Hz, Single Phase, 9.0 A
• 220 V ~ ±3%, 50/60 Hz, Single Phase, 7.0 A
• Maximum Power Consumption: 650 W

Physical Connections

• Oxygen Inlet: 0.25-inch Swagelok
• Ozone Gas Piping Outlet: 0.25-inch  SS Swagelok

Materials and Construction

• Enclosure: Brushed Stainless Steel/Aluminum
• High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
• O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass

Dimensions and Weight

• Enclosure Dimensions: (4U) 7-inch height x 19-inch width x 14-inch depth (Standard 19" Rackmount)
• Generator Weight: 32 lbs.
• Shipping Weight: 38 lbs

Certifications and Approvals

• CSA - available as an option

Reliability, Performance and Quality Backed By 5 Years Warranty
