Optipow - Air Dust Collector Jet Pulse Valve

• Min. Order: 1
• Optipow Valve Capacity: 200000 pcs/year
• Payment Terms: TT, LC, D/P, Western Union, Paypal, Personal Account...
• Transport Package: Special Foam Box Packing and Wooden Box for Optipow Valve
• Inventory: 20000sets of Optipow Valve and 1000000pieces of Parts
• Delivery Date: 1 Hour
• Optipow Valve Serves: Changing instead of Repairing
• Optipow Valve Origin: China

Basic Info

ALSTOM OPTIPOW AIR DUST COLLECTOR INTRODUCTION

Pulse valve for dust collector

The compact pulse valve for the Optipulse fabric filters of different types.Alstom Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.

• is a result of many years of experiences within the fabric filter technology area.
• is quick acting with high efficiency.
• has small dimensions, the figure after the name stands fir the diameter of the plunger.
• is primarily designed to be used in combination with circular pressure tank.
• is easy to install and make service to.
• has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).
• Normal max operating temperature (compact pulse valve) 50°C.

Product Description

The OPTIPOW valve is as standard made for vertical installation. When the valve shall operate horizontally an extra internal spring has to be used. By that the plunger will always be in closed position when pressurising the cleaning system.

The OPTIPOW is normally delivered as one unit in a special package. For detailed instructions regarding erection of separate parts, see OPTIPOW assembly drawing.

• Unpack the valves at first when mounting them.
• Check that there are no visible damages on the valve.
• Check that there are no foreign materials inside of the valve.
• Check that the top of the pulse pipe is smooth without any burrs.
• Position numbers below refers those mentioned in figure 1.

Put the plunger (pos 4) on the top of the pulse pipe. Lubricate the O-ring on the outer side of the valve house (pos 1) and match the house to the plunger. When installing the pulse valve be careful not to damage the O-ring. Tum the house so that the solenoid is pointing in right direction. Screw the four bolts with fingers as long as possible and make then the last setting with tool cross-wise to avoid damages to the O-ring. Torque according to specifications.

A Professional Alstom Optipow 135 Solenoid Valve Manufacturer

The service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction.

Low loss of compressed air: the OPTIPOW pulse valve reduces the amount of compressed air consumption compared to diaphragm type.

Compact size: OPTIPOW pulse is much smaller than the diaphragm valve shape the pulse valve shape, which means that the bag spacing not is restricted by the size of valve, only the process parameters (gas Bubbe, without filter, fly ash type and concentration) determines the bag size, two OPTIPOW pulse valve short distance you can go to 160mm.

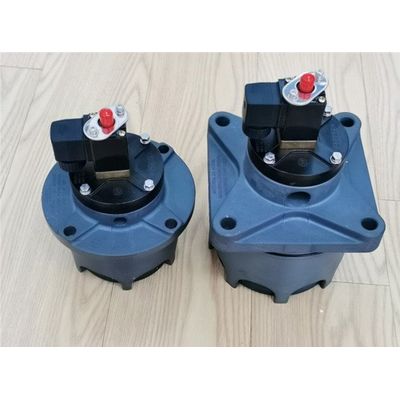

OPTIPOW pulse valve has two specification 105 and 135, the number represents the diameter of the piston.

ALSTOM piston type pulse valve OPTIPOW105

• Piston diameter 105mm
• The number of filter bags: 30
• Length of filter bag: 10M
• Piston type pulse valve V1585320
• Piston type pulse valve V3630501

OPTIPOW 105 (24 VDC ) V1617803-0100

• OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200
• OPTIPOW 105 (110V, 50 Hz) V1617803-0300
• OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400
• OPTIPOW 105 (220V, 50 Hz) V1617803-0500
• OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600
• OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800
• Coupling set V3592382-0000
• Membrane V4549902-0100
• O-Ring (Fluor rubber 64,5 x 3) 8003-5573
• O-Ring (Nitril 70SH 64,5 x 3) 2136-1422
• O-Ring (114,5 x 3) 2136-1435
• Pilot cover V3630501-0100
• Plate V3630524-0100
• Plunger V3630527-0100
• Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173
• Rubber disc V3630530-0100
• Rubber disc V3640661-0100
• Screw (ISO4762-M10x30-8.8

ALSTOM piston type pulse valve OPTIPOW135

• ALSTOM model OPTIPOW piston pulse cleaning valve
• OPTIPOW 135 (24V) V1614718-0100
• OPTIPOW 135 (100V, 50 Hz) V1614718-0301
• OPTIPOW 135 (120V 60Hz) V1614718-0400
• OPTIPOW 135 (120V 60Hz UL-CERTIFIED) V1614718-0700
• OPTIPOW 135 (without solenoid, revolving 90° C) V1614718-0800
• Membrane V4549902-0100
• O-Ring (Fluor rubber 64,5 x 3) 8003-5573
• O-Ring (Nitril 70SH 64,5 x 3) 2136-1422
• O-Ring (114,5x3) 2136-1441
• Pilot cover V3630501-0100
• Plate V3630524-0100
• Plunger V3629022-0100
• Round washer (SS3576-5-200HV FE/ZN25) 4903-2146
• Rubber disc V3640660-0100
• Solenoid valve (24 V DC ) V3611471-0100
• Solenoid valve (100 V, 60 Hz) V3611471-0201
• Solenoid valve (110 V, 50 Hz) V3611471-0300
• Solenoid valve (110 V, 60 Hz) V3611471-0200
• Solenoid valve (120 V, 60 Hz) V3611471-0400

Solenoid valve (120 V, 60 Hz-UL CERTIFIE ALSTOM`s new OPTIPOW compact piston pulse cleaning valve ALSTOM`s OPTIPOW new compact piston pulse cleaning valve is mainly used for bag cleaning and installation on a round drum.
