Air Flo - Model 3 -Aeration Systems
The Air Flo 3 diffused aeration system compliments Otterbine`s line of aeration systems with a sub-surface option to water quality management. Engineered to offer increased energy efficiency and quieter operation, this "bubbler" type system system is available with 1-disc or 2-disc manifold assemblies.
Diffused air is a simple concept which entails pumping air through a pipe or tubing and releasing this air though a diffuser below the water’s surface. The Air Flo 3 system has no visible pattern allowing landscape designs to remain serene and calm.
Able to operate in depths up to and exceeding 40ft or 12m, the Air Flo 3 is unique to the Otterbine aerators line as it uses quiet on-shore compressors that pump air to diffusers placed at pond bottom. Diffusers release oxygen throughout the water column creating mass circulation that mixes bottom and top water layers and breaks up thermal stratification. Systems are available in a variety of configurations featuring either single or dual disc manifolds, and most allow for future expansion if needed. The result - a healthy, clean environment for aquatic habitat combined with many other benefits:
- Lake Management:
The Air Flo 3 system is extremely effective in all ponds with a depth of at least 6ft (2m), and all the way up to of 40+ feet (12m) depths. It breaks down thermal stratification and stimulates bottom aquatic life which feeds on algae and organic nutrients. The Air Flo 3 system is ideal for managing water quality of effluent ponds and lakes without releasing harmful particulates into the air, and is excellent in breaking up thermal stratification in ponds and lakes.- Invisible:
No parts of the system or a spray pattern are visible from the lake`s surface. Those concerned with evaporation favor the Air Flo 3 system since no water is released into the air.- Safety:
No electricity or moving parts are near the water; this makes the system entirely safe for swimming, boating, and fishing. Package electrically safety tested and listed with ETL, ETL-C. Products for European Union are also safety tested, approved and carry a 3rd party independent CE mark.- Cost:
Initial cost, maintenance cost, and operational costs are all relatively inexpensive.- Versatile:
One Air Flo 3 System can be used for multiple ponds.- Cost Effective:
Inexpensive in terms of both capital and operation costs.- Proven Performance:
Otterbine is the only manufacturer to have oxygen transfer and pumping rates independently tested and published on their aeration systems.- Comprehensive Warranty:
All-inclusive 2-year warranty on entire package- Complete Package for All Systems:
Includes compressor(s), cabinet, & diffuser(s). (Tubing sold separately.)

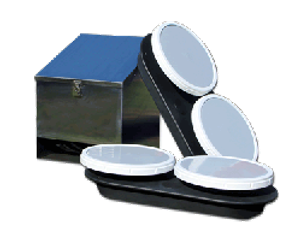

The Air Flo 3 system is protected by an enhanced 18 gauge, 304 stainless steel cabinet enclosure.
The benefits of this enclosure include:
- Stainless Steel Means No Rust
- System Components are Vandal Resistant
- Compact and Low Profile - Out of Sight, Out of Mind

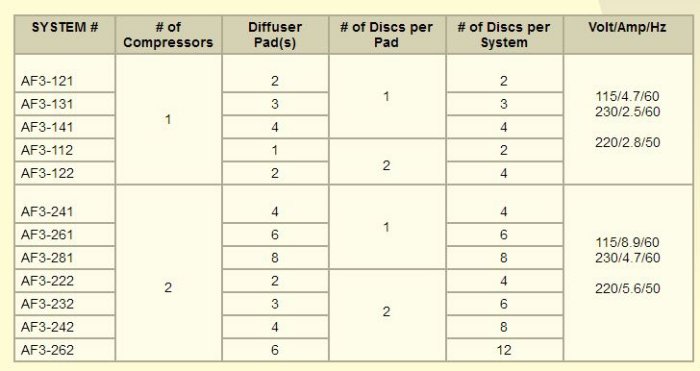

Air Flo 3 Diffused Air Systems incorporate 1/2HP oil-less rcking piston compressors allowing for operating depths up to and exceeding 40ft or 12m.
- All systems come with self-cleaning 12in (305mm) disc diffuser manifolds (single or dual).
- Diffuser manifold base is constructed of high density polyethylene plastic and incorporate ballast channels for level sinking of pads during installation.
- Enhanced 18 gauge, 304 stainless steel cabinet construction is corrosion resistant, provides quieter operation and simplified servicing.
- Compact & low profile, cabinet footprint for all systems is 16in x 16in x 20.5in (41cm x 41cm x 52cm).
- Cabinet cooling system includes (2) axial fans that draw air through vented louvers for complete cabinet air exchange at the rate of 225 times per minute.
- Valve manifolds located inside cabinet allow for future expansion of most Air Flo 3 systems.
- Cabinet enclosure secured by stainless steel latch that accommodates a locking mechanism.
- Complete package is safety tested, approved and listed with ETL and ETL-C. Products for the European Union are also safety tested, approved and carry a 3rd party, independent CE mark. Minimum operating depth varies.
