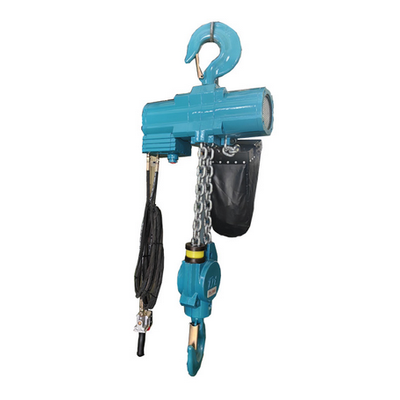

Longhai - Model LSHQ -Air Hoist
LSHQ type pneumatic hoist , Longsheng brand, load capacity 0.25-100t, has undergone 400 hours of continuous fatigue testing. It uses compressed air to drive a pneumatic motor to rotate, and the torque is increased through speed reduction to complete the lifting work. Galvanized material and Grade 100 chain are available upon request; chain length can be extended; copper upper and lower hooks are also available.
Most popular related searches
- Widely used in shipyards, chemical plants, high-temperature dust environments, textile mills for lifting and transporting products, paint shops, oil tank storage and transportation, and other occasions.
- The LSHQ type pneumatic hoist includes three sizes: small, medium, and large. Smaller sizes are available in: LSHQ-0.25-1, LSHQ-0.5-1, LSHQ-1-1, LSHQ-1-2, LSHQ-2-2, LSHQ-3-1, LSHQ-3-2, and LSHQ-5-2. The available models are: LSHQ-6-2, LSHQ-8-2, LSHQ-10-2, LSHQ-12-2, LSHQ-16-2, and LSHQ-20-2. Larger sizes are available in: LSHQ-25-2, LSHQ-30-2, LSHQ-37-3, LSHQ-50-4, LSHQ-75-3, and LSHQ-100-4.
- The LSHQ type pneumatic hoist has undergone 400 hours of continuous fatigue testing and can be used frequently for a long time. It is especially suitable for continuous operation scenarios such as automobile production lines and shipbuilding.
- Driven by compressed air, it is 100% spark-free, completely eliminating the risk of combustion and explosion in flammable and explosive environments such as petrochemical plants and coal mines .
- The LSHQ type pneumatic hoist can be steplessly speed-adjusted and runs very fast, 3 times faster than an electric hoist and 5-10 times faster than a manual hoist.
- The LSHQ type pneumatic hoist has overload protection and air shortage protection functions, making it safer to use .
- Smaller in size and lighter in weight than electric hoists, easy to handle, with a robust structural design, reliable operation, and low maintenance requirements .
- The LSHQ type pneumatic hoist’s internal lubrication system eliminates air pollution, making it suitable for working in harsh environments such as humid and dusty conditions
