Canadyne ShoreBarrier - Air-Inflatable Boom

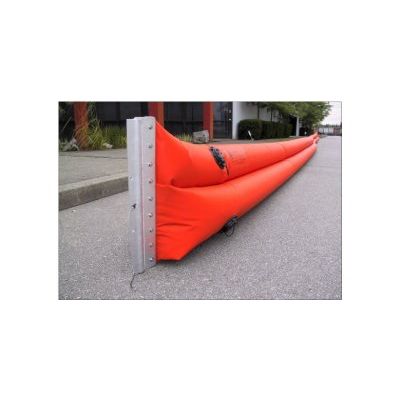

Canadyne ShoreBarrier Boom is an air-inflatable boom employing a full-length cylindrical buoyancy chamber. Hanging below the buoyancy chamber are a pair of internally interconnected cylindrical ballast chambers that are filled with water. The heavy ballast ensures a reliable seal in the intertidal area. Filling and emptying of all chambers is accomplished through large valves located in each compartment.
Most popular related searches
inflatable boom
pressure relief valve
boom inflation
flow control check valve
oil containment boom
relief valve
boom storage
valve locating
water pump
oil containment
- Boom Type: Intertidal, Triple Chamber
- Recommended Conditions: Tidal zones, beach sealing

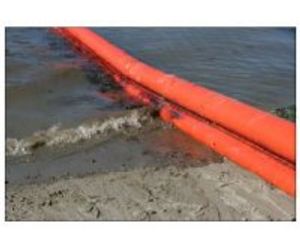

Canadyne ShoreBarrier Boom is a triple chamber boom for use in the intertidal zone. Water filled lower chambers provide ballast and stability on land. Air filled upper chamber provides flotation and freeboard in water.
- Triple chamber design for utmost stability on land and in water.
- Twin, water-filled cylindrical lower chambers provide a seal to the land on that portion of boom that is above the water’s edge.
- Single, air-inflated cylindrical upper chamber provides buoyancy and freeboard on that portion of boom that is floating in the water.
- High flow check valves for rapid filling and emptying.
- Optional Pressure Relief Valves, Optional Bottom Abrasion Strips
- High strength urethane fabrics, ASTM, Shotgun or Universal connectors.
- Ultra compact storage dimensions. May be stored on reels.
- High quality PVC and PU fabrics
- All seams radio-frequency (RF) welded
- Marine grade extruded aluminum ASTM style end connectors
- 50 foot (15.25m) section length
- Single, inflatable buoyancy chamber
- Pressure relief valve in buoyancy chamber
- Dual, interconnected, water-filled ballast chambers

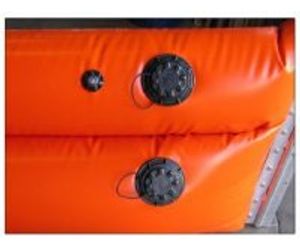

- Monsun valves in air and ballast chambers for filling/emptying
- Black webbing handles at connectors, (additional handles optional)
- Stainless steel hardware / fasteners
- Full factory support for spares, repairs and technical assistance
- Upgrade to heavier PVC or to polyurethane fabrics for increased abrasion resistance
- Double layer bottom fabric for increased abrasion and puncture resistance
- Universal-type or Shotgun-type aluminum end connectors
- Custom sizes, section lengths
- Custom screening of client name, logo or identifying marks
Recommended Accessories
- Boom inflator
- Water pump and hoses for filling/emptying of ballast chambers
Storage Options

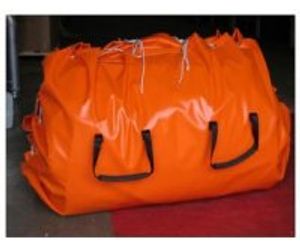

- Boom storage bags, storage/deployment containers, trailers
