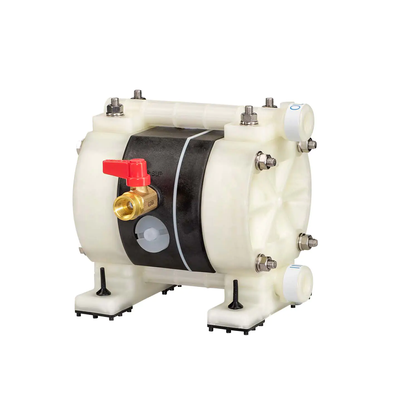

Yamada - Model NDP - 5FP -Air Operated Double Diaphragm Pump

• Valve type: Flat
• Maximum capacity: 11 liters/min
• Port size: 6 mm | 1/4"
• Air Supply Pressure: 2 - 7 bar (0.2 - 0.7 MPa)
• Discharge Volume per Cycle: 20 mL
• Maximum Cycles per Minute: 400
• Maximum Size Solid: No solids allowed (Slurry cannot be handled by a flat valve)
• Maximum Dry Suction Lift: 1,0 m
• Body material: Polypropylane (PPG)
• Diaphragm material: PTFE (T)
• Air motor: Standard: Ryton air motor

• Diaphragm Kit:   K5D-PT
• Valve Kit: K5V-PT
• Wet End Repair Kit: K5-PT-2
• Airmotor Kit:   K5-AM
• Airmotor Seal Kit:  K5-AMS

Please note if you have a special pump or add-on, it’s possible you also need a special provided kit. Contact us for your options.
