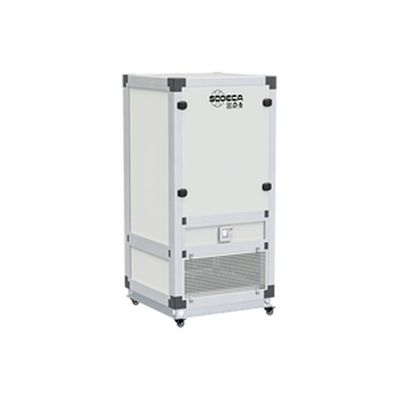

Sodeca - Model UPA -Air Purifying Units

Characteristics:

• Plug-fan type fans with EC technology.
• Efficient, adjustable and low noise level equipment.
• Filtration stages according to model
• First stage of F7 Filtering.
• Activated carbon filter.
• Final filter F9.
• HEPA H14 final filter, 99.99% efficiency.
• UVc germicidal chamber, depending on order code.
• Control panel with on/off and dirty filters indicator.
• Led indicator germicidal chamber operation.
• Completely removable for cleaning and maintenance.
• Panels with interior insulation.

Motor:

• High efficiency, external rotor, E.C. technology motors, incorporating constant flow regulation, with two pre-adjustable set points.
• Single-phase 200/230V– 50/60Hz.

Finishing:

• Frames made form aluminum section and 25mm insulated panels, pre-finished exterior, galvanized interior.

On request:

• Drive module 1 front grill.
• Drive module with circular ducts.
• Equipped with wheels.

Construction:

• Vertical Unit (UV) ideal for direct use on the rooms to be purified, it can also be supplied on request with an impulsion module with outlet through diffusion grille and with wheels if necessary.
• Horizontal Unit (HU) conceived to be installed in false ceilings and connected through ducts to the premises where the air needs to be treated.

Filtered:

• These air purification units are equipped with filters capable of removing at least 70% of particles larger than 0.4μm.
• The standard model comes with a first G-4 filter stage and a final F-9 filter, it also incorporates as standard, an activated carbon stage, designed to remove stale odours produced during everyday use of the premises.
• Depending on the model, filters of the HEPA H14 type can be installed with a minimum retention capacity of 99.99% of particles greater than 0.3μm.

Germicidal Chamber:
According to the model, these purification units can integrate a germicidal chamber, built with UVc ultraviolet lamps in a 256 nm spectrum, a wave width indicated to inactivate a wide variety of microorganisms by absorbing short wavelength energy through DNA and RNA.
