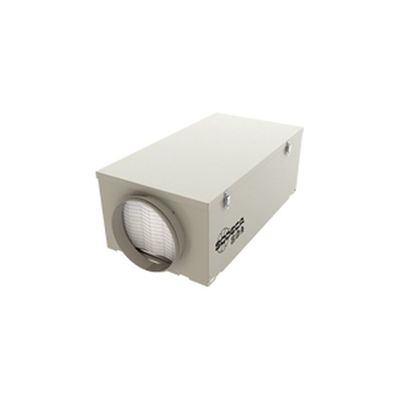

Sodeca - Model SV/FILTER-CG -Air Purifying Units with UVc Germicidal Chamber

Characteristics:

• Built-in UVc germicidal chamber.
• Acoustic casing covered with sound absorbing material.
• Standardised inlet and outlet flanges allowing for easy installation in ducts.
• F7+F9 filters.
• Easy access inspection and cleaning hatch.

Construction:

• Galvanized steel sheet casing.
• Backward curved impellers, except for models 125 and 150 which have multi-bladed impellers. Supplied with four support feet for easy mounting.
• Access doors to facilitate maintenance and cleaning.

Motor:

• External rotor motors with built-in thermal protector, class F, with ball bearings, IP54 protection.
• Single-phase 230V 50/60 Hz adjustable.
• Maximum temperature of air to be carried: +50 ºC.

Finishing:

• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.

On request:

• Other filtration stages: G4+F6 or F6+F8.
• Automatic control system.
