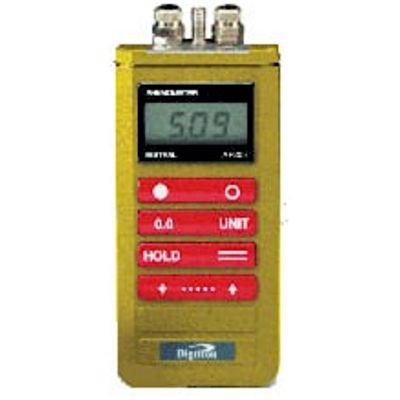

Digitron - Model AF200 -Air Velocity Pitot Tube Instrument

Digitron AF200 offers high standards of performance and value for prescision air velocity measurements. The pitot tube method of measurement employed by the AF200 is suitable over the range 1.5m/s to 58m/s and up to +600°C. The instrument also functions as a stand alone micromanometer or temperature meter for true user versatility. A full kit is available to accompany the AF200. This includes 295mm/12 pitot tube, air temperature probe, instrument protective cover and sling, quick fit pressure connectors, rubber tubing, nylon tubing and 9V PP3 battery. All this fits neatly into a custom carrying case.

Most popular related searches

pitot tube

portable anemometer

air velocity monitoring

velocity pressure measurement

air velocity instrument

air monitoring

Velocity, temperature and pressure measurement
Multi-point averaging
Smoothing
Correction mode for temperature, pressure and K factor
Easy zero adjust
Measurements in both imperial and metric units
Last configuration memorised
Simplicity and reliability
Choice of pitots
Optional protective cover and sling
Over 300 hours battery life
Backlit display

VELOCITY:
- ±0.2 m/s @10 m/s – 58 m/s, 15°C +25°C
- ±0.3 m/s @4 m/s, 15°C +25°C
PRESSURE:
- ±0.2% rdg ±1 at digit, 15°C +25°C
- ±0.3% rdg ±1 digit elsewhere
TEMPERATURE: ±0.1°C rdg ±1C

SPECIFICATION

OPERATING TEMPERATURE: -10°C +50°C / +14°F +122°F
BATTERY TYPE: 1 9V PP3S or equivalent
BATTERY LIFE: 300 hours typical (using Alkaline Battery)
DISPLAY: 12.7mm / 0.5” custom LCD with automatic legend display
LOW BATTERY WARNING: ‘BAT’ shows on display
AUTO POWER OFF: 5 minutes approx., disabled during correction and averaging modes
CONECTIONS: Push-fit plastic tubing, 6mm/0.236” O.D., 4mm / 0.157” I.D.
DIMENSIONS: 140 x 70 x 26 mm / 5.5 x 2.8 x 1.0”
WEIGHT: 250 gr / 8.8 oz

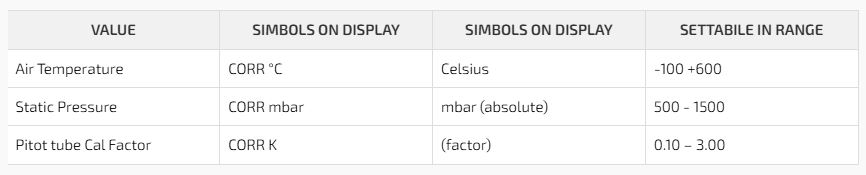

CORRECTION RANGES

m/s: 1.5 - 58
°C (AF + probe): -60 +590
mbar: 0.00 – 19.99

Digitron - Model AF200 -Air Velocity Pitot Tube Instrument

Key Features

Information

Settable In Range
