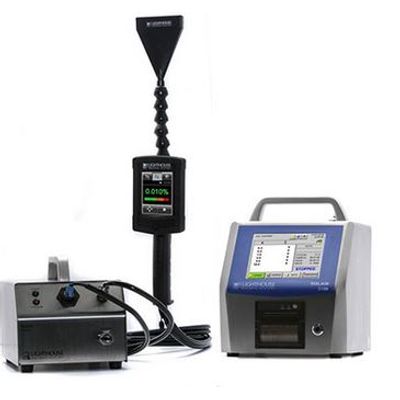

Lighthouse - Model ScanAir Pro -Airborne Particle Counter
ScanAir Pro is the only particle counter based, portable system for scanning HEPA/ULPA filters for filter efficiency testing. Scans your filter media for leaks, incorporating an ergonomic lightweight scanning probe with touchscreen user interface. The ScanAir Pro System also includes a Solair portable particle counter and a dual-port dilutor that can be remotely switched between measurements from the touch screen handle.
The Lighthouse Scan Air provides an easy-to-use means of checking HEPA / ULPA Filters and their seals for leaks and efficiency.
The Scan Air incorporates an Isokinetic probe specifically designed for a sampling flow rate of 1.0 CFM (28.3 LPM) across a wide area.
The Scan Air includes a Remote Start/Stop button and 7.62 meter (25-foot) cable. The Remote switch features hands-free operation of the SOLAIR portable particle counter enabling the user to efficiently sample in compliance with ISO 14644.
The on-board alarm buzzer and LED quickly notify the user if a count exceeds the alarm threshold, even when the Scan Air is being used in a high noise environment. The twist-lock connector quickly and easily connects or disconnects the Scan Air from a Solair portable particle counter.
The Solair and Scan Air can be used as a portable contamination detection system throughout the cleanroom environment.
- Ergonomic and Lightweight
- Touchscreen User Interface
- Upstream and Downstream Mode of Measurement
- Automatic Calculation of Alarm Threshold
- Scan & Size Leaks
- Display Percentage Leak During Downstream Mode
- Display Upstream or Downstream Measurements
- Only Solution for Testing PTFE Media Filters
- Ability to Challenge Test Filters With a Much Lower Concentration Than a Photometer
- Virtually No Coalescence of Aerosol
- Use PSL and PAO for Filter Challenge Testing
- Multi-Function System Allows Instruments to be
- Utilized for Other Applications
