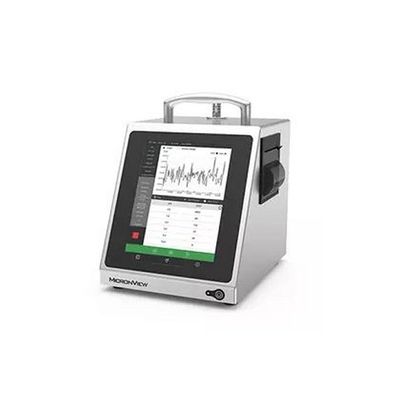

Micron - Model A120 -Airborne Particle Counter (50L/min)
Airborne Particle Counter (APC) is fully compliant with ISO14644-2015 and ISO21501-4 standard.
Most popular related searches
- FLOW RATE: A120: 50LPM±3%
- SIZE RANGE: A120: 0.3µm-25µm
- SIZE CHANNELS: A120: 0.3µm, 0.5µm, 1.0µm, 3.0µm, 5.0µm, 10.0µm
- SIZE RESOLUTION: <15% @ 0.5µm (meets ISO 21501-4)
- COUNT EFFICIENCY: A120: 50% ±20% for 0.3µm, 100% ±10%for >0.45µm (meets ISO 21501-4 and JIS B9921)
- CONCENTRATION LIMIT:A120: 840,000 particles/ft³at 10% coincidence loss
- ZERO COUNT: <1count/5min
- EXHAUST: Internal HEPA filter (>99.997%@0.3µm)
- ZONE/ LOCATION: 20,000 rooms and 200,000 locations
- SAMPLING TIME: 1 second to 168 hours
- CYCLES: 1000 samples on one location
- LASER SOURCE: Long life laser
- DATA STORAGE: 3.5G, ≥5,000,000 sets of sample records
- DISPLAY: 8” LCD capacitive touch screen
- LANGUAGE: Chinese, English
- DATA RELIABILITY: Compliant with 21 CFR Part 11
- REPORTS: Compliant with ISO/EUGMP/CHINESEGMP/Fed Std
- CALIBRATION FREQUENCY: Recommend at least once a year
- DIMENSIONS (HXWXD): 254x204x263mm
- WEIGHT: 6.1Kg (13.45lbs) (without battery)
- ENCLOSURE: 316L Stainless Steel
- POWER: AC 100-240V, 50 Hz/60 Hz
- BATTERY: 10.8V, 9000mAh, rechargeable lithium battery
- BATTERY ENDURANCE: A120: running for 7 hours
- MAX POWER: consumption AC 90W
- OPERATING CONDITIONS TEMPERATURE: 5?-35?, relative humidity up to 95%
- STORAGE CONDITIONS TEMPERATURE: -10?-40?, relative humidity up to 98%
- SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 60825-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007+A1,FCC Part 15, Subpart B
- WARRANTY: 2 years after activation
