Airex - Model Bagsonix Series -Baghouse Dust Collector
Discover the power of the baghouse dust collectors in the bagsonix series Baghouse dust collectors stand out due to their ability to handle high volumes of dust laden air using a compressed-air self-cleaning system enabling effective reverse blasting through deformation of the filter bags. The unit filters sub-micron sized particles in continuous operating mode and with a steady loss of differential pressure. Our line of baghouse dust collectors includes sealed mechanisms as well as doors that provide easy access with very few tools required for maintenance.
High filtration capacity
Models from 16 to 720 filter bags and up to 125 000 CFM capacity.
Custom engineering
The systems in the Bagsonix series can be customized based on specific requirements.
Project integration
Avoids particle accumulation within plants, in order to better comply with NFPA regulations.
Standard filter bags
Not limited to obtaining replacement cages and bags from a sole source provider.

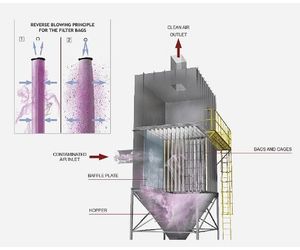

- The dust-laden air is filtered and forms a dust cake on the outside surface of the bag.
- The pulsed air blast causes the bag to expand, which ejects the accumulated dust cake into the hopper.
- Dust-laden air enters and is directed to the bottom of the dust collector by means of a deflector plate prior to going through the filter bags.
- The dust accumulates creating a cake on the outside surface of the bags. At regular intervals, a burst of compressed air is injected into the bags through a parabolic nozzle that creates a shock wave causing the particles to fall to the bottom of the hopper.
- The filtered air exits through the venturis into the clean section and is then either expelled outside or recirculated, depending on the application.
Fast, simple and safe bag replacement
Inside-access models: It is possible to replace the bags with just a screwdriver.
Top-access model: The “B”-shaped belt technology requires no tools to replace the bags.
Continuous operation
Unlike the shaker models, it is not necessary to shut down this type of dust collector to clean the filters.
Economical
The baghouse dust collector is an economical choice because it requires minimal maintenance: only periodic bag replacement is necessary.
We Have The Filtering Medium That Matches Your Needs
Maximum separation performance is made possible by using high quality materials for the filtering fabrics. Our line of natural and synthetic felts enables us to customize the collector to the needs of each facility.
To ensure complete sealing for any type of dust, the filter bags are generally designed to be installed and held firmly in place by either a B-shaped belt, flat belt, cord, double cord or ring. A broad range of treatments and coatings can be applied to either side of the bags to facilitate reverse blasting, increase effectiveness, and extend service life.
Things to Consider When Choosing the Filtering Medium
- substance
- shape
- particle size
- humidity level in the air
- load
- temperature
