Imperial Systems, Inc.
Airlocks

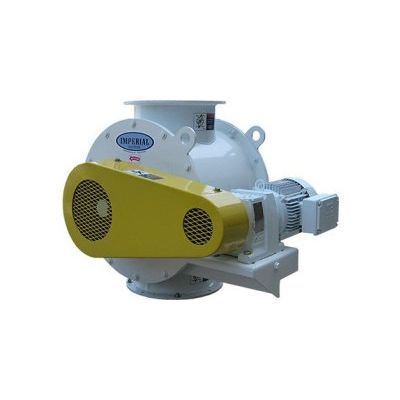

Imperial Systems, Inc. Heavy Duty Airlocks are engineered to outlast all other airlocks.The unit offers the tightest flexible seal, allowing larger particles to easily pass through the valve while maintaining the air seal.Utilizing an Imperial Systems, Inc. HD Airlock on a dust collection system allows for constant operation without the need to shut down and empty containers, minimizing employee exposure to dust and makes the system less susceptible to material back-up and filter damage.
Most popular related searches
- Engineered by the Dust Collection Experts
- Robust 3/8” Plate & 10 Gauge Carbon Steel Construction
- Precise, Strong Welds
- 8 Vane Removable Rotor
- 1/4” Nitrile Rubber (Buna-N) Wipers: Temperature Range is -20°F to 170°F
- Roller chain and sprocket drive including a heavy-duty gear reducer
- Round flanged inlet and outlet (Note: optional square inlet and outlet available at no extra charge)
- Premium Efficiency 2 HP Motor. 230/460/60 Hz/3 phase motor - UL Listed
- Sealed, 4-bolt flange outboard bearings
- Primed and painted industrial enamel
- Standard models are suitable for up to 24” W.C.
- Various voltage motor
- Variable speed selection
- Viton wipers: Temperature Range is -14°F to 400°F
- Custom bolt patterns for inlet and outlets
- Custom transitions available
