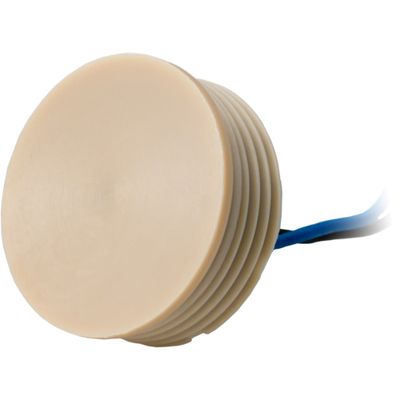

AIRMAR - 1 MHz Ultrasonic Flow Transducer
Robust PEEK HousingAirmar’s low-profile ultrasonic transducer features a robust PEEK housing suitable for in-pipe flow monitoring systems. As an essential part of a system, our transducers are deployed for measuring sewage levels, pipe-flow rate, potential blockage detection as well as irrigation-ditch water levels. OEMs have their choice of an M16 or M28 THREADED housing.
Applications: In-pipe flow monitoring, open-channel flow, wastewater industry
Robust PEEK housing
Low profile
Minimal side lobes
M16 X 1.0 – 6g threaded housing
Weight: 3 g (0.1 oz.)
Nominal Operating Frequency: 1 MHz
Beamwidth: 8° at -3 dB
Nominal TVR: 165
Nominal RVR: -200
Q: 5
Minimum Parallel Resistance: 235Ω
Free Capacitance: 800 pF at 1 kHz
Maximum Driving Voltage: 250Vpp at 2% duty-cycle tone burst
Operating Temperature: -20 to 60°C (-4 to 140°F)
Housing Material: PEEK
Acoustic Window: PEEK
