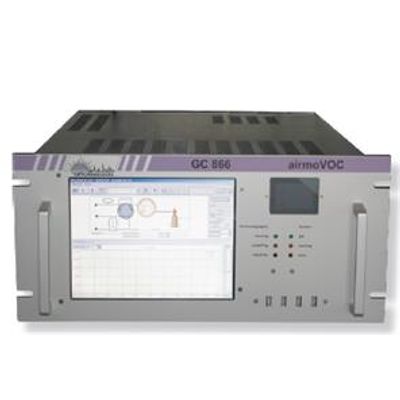

airmoVOC - Model C6-C20+ -Volatile and Semi Volatile Hydrocarbons Analyzers
A GC/FID instrument for Volatile and Semi Volatile Hydrocarbons measurement in ambient air. The airmoVOC C6C20+ is used to monitor VOCs up to the semi volatile hydrocarbons in industrial site, tropical forest and on site under decontamination. With detection limit as low as 1 ppt for Benzene or Naphthalene the system can measure gaseous PAHs in ambient air in continue up to Fluorene and linear alcanes up to N-Hexadecane when coupled to Mass Spectrometer.
The fully automatic system allows to detect such compounds thanks to internal sampling line and ultra-high sensitivity.
Specific Vistachrom Software is used to pilot the instrument as well as the peripherals (e.g. gas generators) which can be provided with the instrument.
- Det QMS for online GC MS monitoring
- MODBUS / JBUS or MGS1 communication protocol
- Analog ouput 4-20mA or 0-10V or alarms
- 24 V power supply
- Hydrogen and zero air generator for transportable analysers
- Multiplexer: up to 32 streams
- Purge module to extract VOC from water for online VOC in water analysis
- External multipoint calibration and zero with CALIB MFC, XXXCYL MFC, airmoCAL 200 MFC
C6 to C20+ analysis:
- C6 (Hexane, Dimethylbutane) to C20+ (Benzo(a)pyrene and N-Pentacosane)
Detection limit:
- Benzene: 5 ppt or 0.0164 µg/m3
- Naphthalene: 10 ppt or 0.05 µg/m3
Detection range:
- Benzene: 0.1 to 380 µg/m3
- Napththalene: 0.05 to 400 µg/m3
Relative Standard Deviation:
- < 0.3 % over 48h (RT)
- < 3 % over 48 h (Conc.)
Base Line: Zero drift:
- < 2%
Linearity:
- R2 > 0.99 on all compounds
Supervisor:
- Full result storage (data and chromatogram)
- Embedded computer Windows® based with LCD display
- 128 GB of Hardware storage on SSD memory
- 4 USB Connecting Port
- Two RS-232 ports
- Display: 10’’ TFT Color LCD
Results:
- Data storage
Cycle time:
- 30 min to 120 min (depending on application)
Gas supply:
- H2 (FID and carrier gas): 30 mL/min (inlet 4 bars; 1/16’’
- double ferrule)
- Air (FID): 180 mL/min (inlet 4 bars ; 1/8’’ double ferrule)
- Sample inlet (vacuum pump) 1/4’’ double ferrule
- Pneumatic valve 90ml/commutation
Operation Temperature:
- Room with air conditioning: 20 to 30°C
Sample volume:
- Up to 2200 mL (programmable)
Power supply:
- Main: 230 V / 115 V or 50 Hz / 60 Hz
- Battery: 24 V (option)
Electrical consumption:
- Mean: 300 VA, Peak 460 VA
Dimensions and weight:
- Rack: 19’’ - (5U)
- Height: 222 mm
- Width: 482 mm
- Depth: 600 mm
- Net Weight: 22 kg
