Airrane - Oxygen Generation Membrane

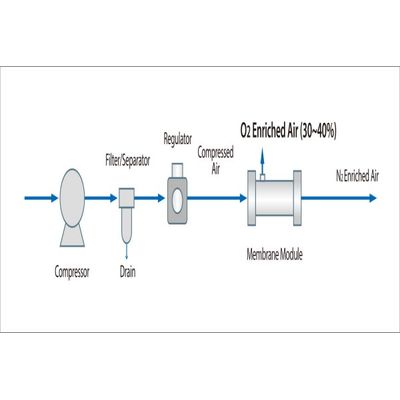

Although various industrial fields require high concentration of oxygen, there are also industrial fields where only an appropriate concentration of oxygen is sufficient without the risk and cost investment required to operate a high concentration oxygen device. Oxygen generating membrane can be installed directly in medical facilities, air conditioning facilities, and sites requiring oxygen supply facilities that have these requirements, and can be an alternative to high-pressure oxygen cylinders, and also helps to improve indoor air quality.
|
Model Number |
Dimension (mm)
|
Connection (inch)
|
Weight
|
||||
|
L
|
OD
|
ID
|
Feed
|
Retentate
|
Permeate
|
||
|
MNH-1512A
|
359
|
55
|
50
|
3/8"
|
3/8"
|
1/4"
|
0.9kg
|
|
MNH-2022A
|
589
|
70
|
60
|
3/8"
|
3/8"
|
3/8"
|
1.9kg
|
|
MNH-3032A
|
856
|
110
|
85
|
1/2"
|
1/2"
|
1/2"
|
6.0kg
|
|
MNH-4040A
|
1064
|
150
|
114
|
1"
|
1"
|
1"
|
14kg
|
|
MNH-6160A
|
1580
|
200
|
157.5
|
1.5"
|
1.5"
|
1.5"
|
26kg
|
- Easy installation with low set-up costs
- Quick start-up: oxygen-enriched air is immediately provided upon start-up of the separator without any delay
- Flexible application makes it an effective solution for a wide range of facilities from small oxygen generators to large boiler system
- Easy operation and Minimal maintenance requirements
- Portable equipment for oxygen generation
|
Method
|
Cryogenic
|
PSA
|
Membrane
|
|
Oxygen Concentration |
Over 99.9%
|
80 - 90%
|
30 - 40%
|
|
Installation Costs
|
High
|
High
|
Low |
|
Installation Area |
Large
|
Large
|
Small
|
|
Structural Features
|
High pressure process Need Evaporator |
Batch Type Swing Process Absorbent powder residue |
Simple Structure Bacteria-Free, Dust-Free |
|
Device Size |
Large
|
Small - Large
|
Small - Middle
|
|
Components |
Tower / Tank /High pressure Compressor/ Refrigerator |
Tower/Tank/Filter Absorbent/Swing valve/Silencer |
Separation Membrane / Filter |
