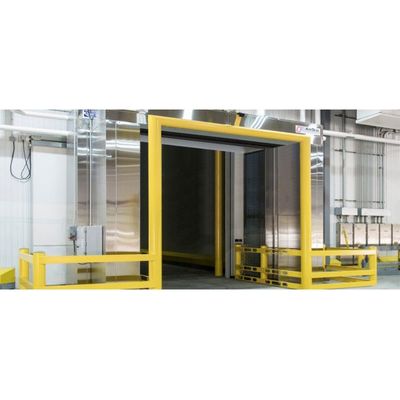

ASI Doors - Model 715 -Airseal Technology Doors
FromASI Doors, Inc.
ASI Doors’ AirSeal door systems auto-adjust to temperature and humidity changes to maximize your energy efficiency and minimize your refrigeration loss. There’s no door damage or downtime due to forklift impacts, no more waiting for doors to open and close, and virtually no maintenance. And, with a variety of customization options – like integrated sliding or roll-up doors – our AirSeal systems can meet the challenges of a wide range of refrigerated applications.
Most popular related searches
variable frequency drive
variable frequency drive controller
variable frequency drive control
duct system
refrigerant loss
noise regulations
waste reclaim
profiling system
construction waste
DOOR SIZES
- Maximum: 10` x 15`
- Minimum: 6` x 8` (Other sizes available - consult factory)
CONSTRUCTION
- Galvanized steel construction
- Stainless steel (optional)
ELECTRIC OPERATION
- AirSeal - 4,600 cfm at 4” of water gauge
OPERATOR
- High efficiency low noise direct driven operator with minimum 5 HP motor
- Sealed motor bearings
ELECTRICAL FEATURES
- NEMA-4 control enclosure
- Fully programmable controls (Freezer door)
- Variable Frequency Drive
- Optimization controls (Freezer door)
OPTIONS
- Integrate with manual / power sliding insulated cooler/ freezer, or high speed fabric roll-up doors
- Interlock to existing door
- Strobe lights
- Automatic activation devices for secondary doors
- Stainless steel construction
- Wash down components
- Waste heat reclaim coil (Freezer door)
- Low profile return duct system
- PVC strips
- Insulated vestibules
- Bollards, thru-guarding and fencing
- Non - optimized heat control
WARRANTY
- One year limited warranty on all components
