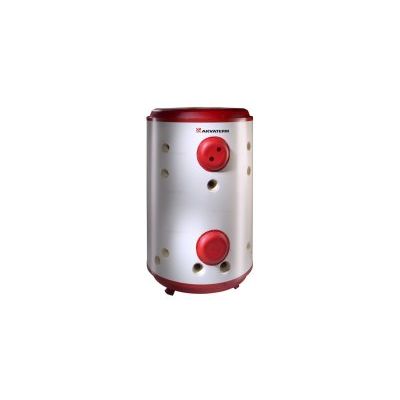

- Standard Accumulator Tank

From

0

Standard steel tanks with capacities 300-5000 litres pressure rated at 1.5 bar. 100mm seamless polyurethane insulation faced with steel sheet. Detachable side panels are an optional extra to allow installation through narrow entrances. An uninsulated accumulator tank can also be supplied, coated with corrosion protective paint. Optional 35 ltr/min standard hot water coil can be fitted to upper hatch. Lower hatch can be fitted with either a domestic hot water pre heating coil, or a solar/ heat pump heat exchange coil. 2” (continental size) fittings are supplied at the bottom and centre of the tanks for electric heating elements or immersion heaters. 3/4' fittings are provided for thermostats and temperature gauges. Inbuilt guide pipes from the flow and return connections ensure proper thermal layering.

MODEL
Capacity (l)
DIAMETER mm
HEIGHT mm
WEIGHT kg
RESISTOR UNITS
AKVA 300 EK
300
710
2050
130
2
AKVA 500 EK
500
800
2050
155
2
AKVA 750 EK
750
950
2050
200
2
AKVA 1000 EK
1000
1050
2100
230
2
AKVA 1500 EK
1500
1250
2150
280
3
AKVA 2000 EK
2000
1400
2200
330
4
AKVA 2500 EK
2500
1500
2250
360
4
AKVA 3000 EK
3000
1600
2300
400
4
AKVA 4000 EK
4000
1800
2450
480
6
AKVA 5000 EK
5000
2000
2500
600
6

E = Insulated K = Water heating coil 35 ltr/min fitted, top of tank.
