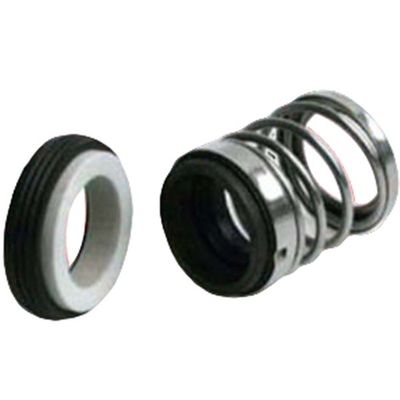

Alflaah - Model Type 03AS -Conical Coil Single Spring Seal

Single Acting, Independent of Direction of Rotation. Face Materials – Carbon, Ceramic, Tungsten Carbide, Silicon Carbide, Lecrolloy. Metal Parts – SS 316, SS 304. Seal Elastomer – Viton, EPDM, Silicon, Aflas, PTFE, GFT, Karlez, FEP, TTV. Applications – Water Pumps, Circulation Pumps for Central heating Chemical Process Pumps, Sewage & Submersible Pumps. Operating Limits – Shaft Diameter d1 :12….90mm. Pressure p : 08 bar (max). temperature : -20….+180°C. Speed: 3000 r.p.m.
