Real Tech - Model AL Series -Algae Sensor
Real Tech’s bypass Algae sensor provides an affordable screening tool to monitor and alarm for source water quality changes. Designed with patented technology, the AL series offers multiple sensor path length selections to meet the desired measurement range for monitoring algae (cells per mL) or chlorophyll a (μg per L). Parameter(s): Algae, Chlorophyll a.
- Affordable, real-time screening for algae in source water
- Outputs as algae or chlorophyll a
- Patented technology to provide superior measurement performance
- Operator friendly, low maintenance design
- Quick and simple optical measurements
- Long life LED technology
- Reagent free operation

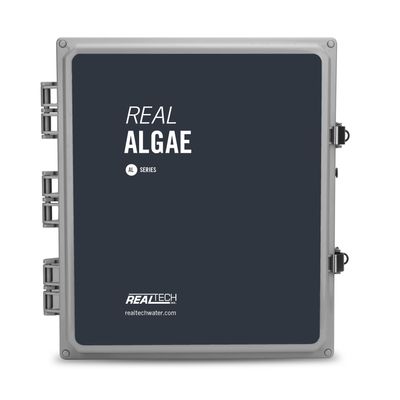

Real Tech’s bypass Algae sensor is a cabinet style instrument installed directly on a wall, railing or system backboard. Sample is supplied to the sensor from a pressurized source or alternatively, from an open-channel using an accessory pumping/cleaning system. The sensor must be connected to a Real Tech controller for operation.

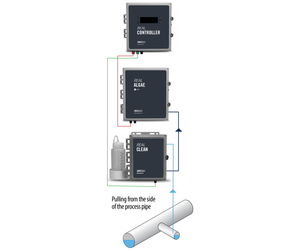

EXAMPLE CONFIGURATION
- Real Controller
For affordable, user friendly operation and control - Algae Sensor
For real-time algae continuous measurement - Real Clean System
For low maintenance automatic cleaning
Multiple sensors can be added to Real Tech’s controllers to expand water quality monitoring capabilities.
Simple to install, easy to operate, no reagents and no waiting for lab results.
Characteristic: Technical Data
- Path Lengths: 50 mm, 100 mm, 150 mm
- Parameters: Algae or chlorophyll a
- Range : Depends on model selected. Refer to range chart
- Units: Algae (cells per mL) or Chlorophyll a (μg/L)
- Sampling Time: 30 seconds
- Calibration: Factory calibrated. Field adjustment of calibration is possible.
- Cleaning: In-situ chemical cleaning makes cleaning quick and easy. Automatic chemical cleaning is optional.
- Self-Diagnostic: Detection and diagnosis of internal system fault
- Alarms: Dry contact terminals allow operator configurable alarms for:
- high and low set points, low lamp output, leak detect, system fault, etc.
- Humidity Control: Humidity sensor with large regeneratable desiccant system
- Wavelengths: Multiple wavelengths
- Light Source: LED
- Flow Rate: 300 - 1000 mL/min
- Pressure Rating: 20 PSI maximum
- Fluid Connections: 1/4" OD tube push-in fittings
- Electrical/Comm. : From controller
- Storage Temp: -20 to 60°C (-4 to 140°F)
- Operating Temp: 0 to 45°C (32 to 113°F)
- Enclosure: NEMA 4X, wall mountable
- Weight: 24 lbs
- Dimensions: 17.75"H x 15.5"W x 6.75"D
- Warranty: 2-year limited warranty (Extended care packages available)
- Sensor Upgrades: High Temp. Upgrade II
* Technical Specifications are subject to change without notice.
