ALIA - Model AMF300 - Alia ...

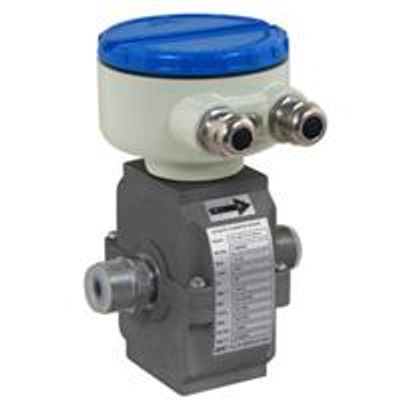

ALIA - Model AMF300 -Alia Electromagnetic Flowmeter AMF300 Threaded type

AMF300 Series is a threaded type electromagnetic Flowmeter ideal for conductive liquids. It comes in sizes from 3 to 32 mm. The AMF300 is widely used for tap-water, waste water, food & beverage,Pulp & Paper and many other industrial fluid. AMF300 Series electromagnetic flowmeter could be used in compact or separate model with AMC Series converter of electromagnetic Flowmeter. FEATURES Light and compact version Flow Velocity range:0-12 m/s, with precisely measure for low flow applications Interface thread piping FEP Liner is suit for vacuum tube High accuracy of +/-0.4% value of reading (or+/-0.2% value of reading) With Forward/Reverse flowrate measure function SPECIFICATION Size:3 , 6 , 10 , 18 , 22 , 32 mm Measuring Range:Velocity 0-0.25 m/s min./ 0-12 m/s max. Liner:FEP Electrode: Stainless Steel 316L (3mm~32mm) Titanium (3mm~32mm) Hastelloy B (3mm~32mm) Hastelloy C (3mm~32mm) Tantalum (3mm~32mm) Platinum (18mm~32mm) Ambient Temperature:-25 to +60 deg.c
