ALIA - Model AHV250H - ALIA ...

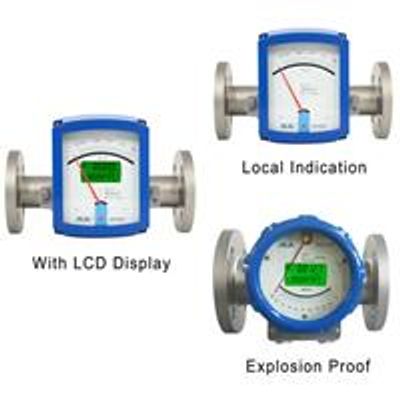

ALIA - Model AHV250H -ALIA Horizontally mounted Metal Tube Variable area Flowmeter AVF250H

The AVF250H is a horizontally mounted metal tube variable area flowmeter. With its unique design,it can provide a mechanical pointer display without power supply, as well as intrinsically safe and explosion-proof to suit various operating conditions. FEATURES Spring type horizontal mounted metal tube flowmeter 5 digit flowrate & 8 digit totalizer Local indication without auxiliary power 4-20 mA & scale pulse output Low pressure loss in gas and steam application Damper for Gas / Steam application Consistent overall length Intrinsically safe & explosion proof for hazardous area SPECIFICATION Size: Local Display: 15,20,25,40,50,65,80,100,125,150,200 mm Communication: RS485 (MODBUS Protocol) HART signal (Compatible) Temperature:0 ~ +100 oC(Standard)
