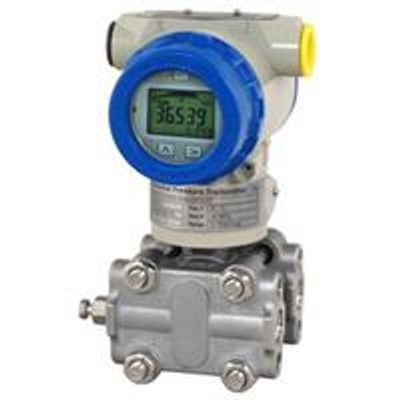

ALIA - Model ADP9000 -Alia Smart Differential Pressure Transmitter ADP9000

ADP9000 series is a digital differential pressure transmitter designed for industrial pressure measurement applications.The ADP9000 offer of Configurations for Differential, gas, absolute Vacuum liquid-Level measurements including integrated solutions for pressure, level and flow. FEATURES Updating time of output current in 200 ms Improved performance, increased accuracy, greater stability Two Years stability of 0.2% 0.075% accuracy Parameter setting by local keypad or RS485 communication port 4-20 mA output plus direct digital HART communication Automatic zero calibration by push button Explosion proof and weather proof housing SPECIFICATION Process Fluid:Liquid, Gas of Vapor Application:Differential Pressure, Gauge Pressure,Absolute Pressu Measuring Range:0 - 0.25 Kpa ~ 0 - 1.5 Kpa ( Minimum ) 0 - 4.0 Mpa ~ 0 - 25.0 Kpa ( Maximum ) Accuracy:+/- 0.75% of span Material: Flange/Adapters:Stainless Steel 304 / Stainless Steel 316 Drains/Vents:Stainless Steel 304 / S
