FBGS AGF - All Grating Fibers

AGF-LBL-1550-125
The Low Bend Loss fiber LBL-1550-125 has a cladding diameter of 125µm and is optimized for operation in the 1550nm wavelength window. The glass composition has also been tuned so that the fiber maintains a good signal transmission under small bending diameters.

AGF-LAL-1550
The Low Attenuation Loss fiber LAL-1550-125 has a cladding diameter of 125µm and is optimized for operation in the 1550nm wavelength window. The glass composition has also been tuned so that the fiber gives a good compromise between signal transmission under small bending diameters and attenuation.

AGF-LBL-1550-80
The Low Bend Loss fiber LBL-1550-80 has a cladding diameter of 80µm and is optimized for operation in the 1550nm wavelength window. The glass composition has also been tuned so that the fiber maintains a good signal transmission under small bending diameters.

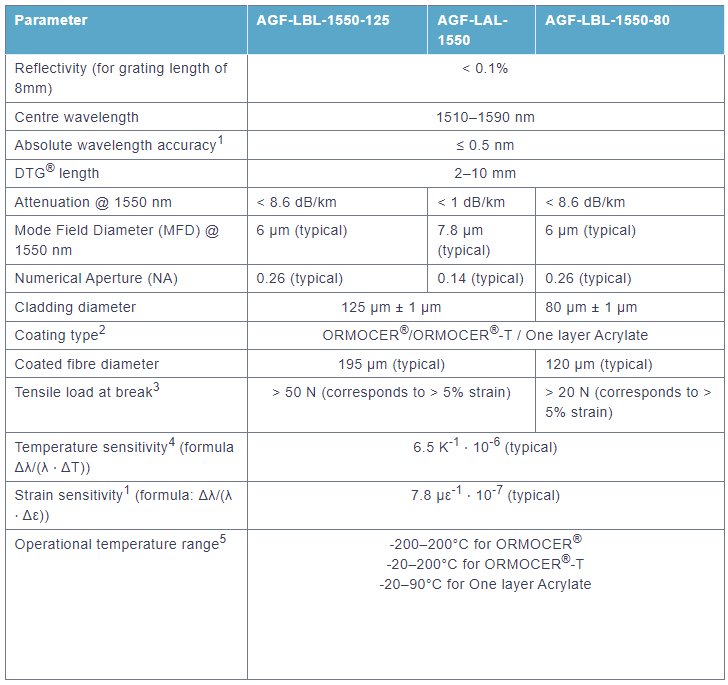

1. measured at room temperature
2. Ormocer® is mainly applied for strain measurements while Ormocer®-T is recommended for temperature measurements.
3. According to IEC-60793-1-31 using a constant displacement of 30mm/minute.
4. measured between 0°C and 70°C
5. temperature range is dependent on exposure time
