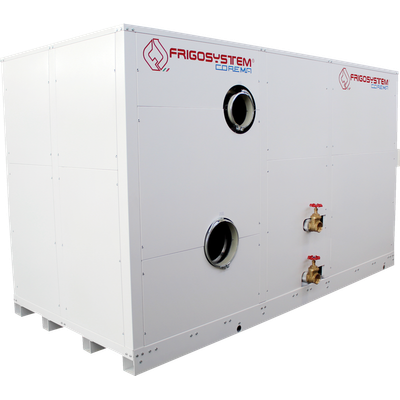

Frigosystem Corema - Model KITE -All-In-One Cooling Systems
The KITE system by Frigosystem Corema is an advanced all-in-one cooling solution designed to handle multiple temperature flows and demands in various industrial applications. It supports different cooling processes such as cooling rings, IBC, gauge control, and provides thermoregulated water between 7°C and 25°C for use in extruders, torque motors, and other machinery. The system's architecture includes indirect air and water exchange, eliminating the risk of coil frosting. With its robust electronic controllers and the FS i-LINK connectivity module, KITE ensures seamless operation and monitoring both locally and remotely. This system employs eco-friendly R410A refrigerant, which enhances energy efficiency and reduces emissions significantly compared to older systems. Moreover, the inclusion of a free-cooling feature further optimizes energy efficiency by utilizing ambient conditions. The scroll compressors chosen for their efficiency and low noise further enhance the system's performance.“ALL IN ONE” mono-block solution with several fl ows and temperatures for:
- cooling ring (single or double), IBC and gauge control;
- providing thermoregulated water between 7°C and 25°C (44.6 to 77 °F) to the extruder, torque motors, drawing device and other utilities.
Easy regulated air fl ow from 0 to 100%
Indirect exchange between air and water eliminating any risk of coil frosting.
Droplet separator on all units
Suitable for installation in any climatic area of the world.
The electronic controllers of Kite and Kite Dex have an excellent connectivity to other units. Their program flexibility can match with the most demanding applications and grant a perfect local and remote control, thanks to the connectivity module FS i-LINK. The user-friendly and intuitive interface is supported by a wide, backlit graphic display with several multifunctional keys.
ENERGY SAVING
The gains in efficiency come from the innovative eco-friendly gas R410A. With its improved thermal conductivity, R410A, combined with the preferred choice of scroll compressors and electronic controls, greatly reduces the energy consumption and, accordingly, the emissions of CO2, for which KITE has been certified by ESEER (European Seasonal Energy Efficiency Ratio).
The use of R410A allows a Coefficient of Performance COP considerably higher than R407c, especially in the cooling systems for air. The scroll compressor has been selected too for its features of high efficiency, compactness and low noise level. KITE provides 35% energy saving when compared to the traditional R407c systems.
...and with KITE FREE COOLING additional energy saving 20%!
The maximum energy efficiency comes from the possibility to integrate the KITE with the free-cooling by exploiting the ambient conditions when 5°C (41 °F) lower than the set point. In this case, the chiller automatically stops the compressors and decreases the energy consumption of 100%. The combination of R410A with the Free-Cooling option makes KITE the blown film extrusion cooling technology with the lowest energy costs and the shortest payback time.
