FTS - Model SDI-AWP -All Weather Precipitation (AWP) Gauge

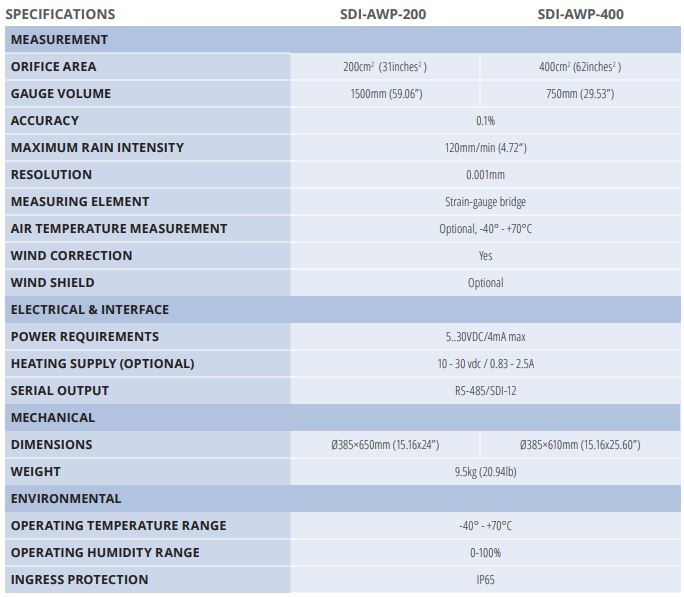

Use Case: Meteorology, Hydrology; solid and liquid precipitation. Accuracy: (% of reading), 0.1% at < 120 mm/min. Resolution: 0.001 mm. Operating Temperature: -40°C to +70°C. Measuring Principle: Strain-gauge bridge. Power Consumption: 1.2mA @12V. Communication: SDI-12 Digital output Pulse output (emulates tipping bucket). Weight: 9.5kg (20.94lbs). Options / Accessories: Orifice of 200cm2 or 400cm2. Pedestal of 1m or 1.5m, Windshield, Military connector or flying leads, Rim heater.
The FTS All Weather Precipitation (AWP) Gauge is an SDI-12 sensor which measures all types of precipitation within a wide temperature range. It is designed to withstand harsh wind and snow conditions without sacrificing sensitivity and accuracy. It boasts a combination of simple mechanical construction and sophisticated firmware, guaranteeing superior performance.
The AWP Gauge is available with an orifice area of 200cm2 (1500mm capacity) or 400cm2 (750mm capacity), with either a 1m or 1.5m Pedestal and matching Wind Shield.
- Measurements of solid and liquid precipitation with one-minute rain intensity, total sum of precipitation and rain duration
- Elimination of wind vibration, particles, false weight changes, evaporation and temperature fluctuation
- Easy to maintain
- Evaluation and accuracy check “in situ”
- Bucket capacity alert function
- Orifice heating optional
- Output: contact, RS-485, SDI-12
