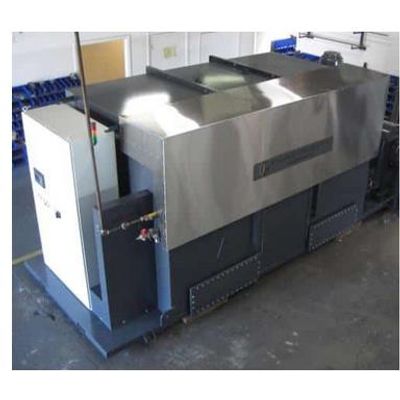

Alliance - Model BOXIDIZER -Regenerative Thermal Oxidizers (RTOs)
From a Standard 20’ ISO Cargo Container to Fully Installed and Oxidizing Your VOC’s in an Afternoon. The BOXIDIZER by Alliance Corporation is an economical Regenerative Thermal Oxidizer that achieves a new level of transport simplicity for domestic and export markets. The BOXIDIZER RTO builds upon the proven designs of our successful KRONUS RTO family and is designed to completely fit within a 20’ standard ISO shipping container.
Most popular related searches
regenerative thermal oxidizer
thermal oxidation
thermal oxidizer
variable frequency drive
air-fuel ratio controller
telemetry data
VOC destruction efficiency
flow control
variable frequency drive motor
vacuum sensor controller
- 98% VOC design destruction efficiency, 95% guaranteed
- 95% thermal efficiency
- Completely fits inside 20’ISO container
- Flow range 1400 to 5600 NM3H / 800 to 3300 SCFM
- Skid mounted
- Factory pre-assembled
- Digital burner air/fuel gas ratio control
- Field selectable fuel gas type
- 250 kWH@ 100 mBAR/ 0.7 mmBTUH@ 1.5 PSI single
- fuel gas point of connection
- Completely pre-wired at factory
- 380 to 480 VAC 50 to 60 hZ, 3 phase, 15 kVA single
- electric point of connection
- Variable Frequency Drives on ALL motors
- Vacuum/flow control
- Modem
- Telemetry data logging
- Self calibrating
- 0.2 NM3H @ 5.5 BAR / 8 SCFH @ 80 PSI single pneumatic
- point of connection
- 5.715M x 2.134M / 18’-9”x 7’-0” footprint
- 10200 kG/ 22400 lb approx. weight
