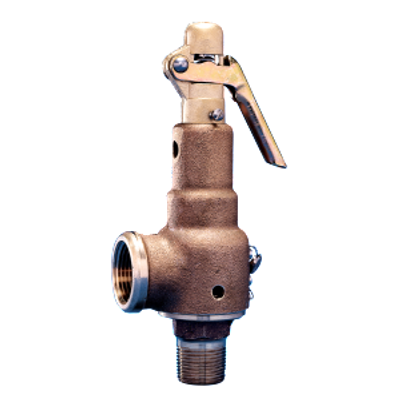

Allied - Model Kunkle 6000 Series -Saftey Valve
SERIES 6000 – ASME Section I and VIII, steam, “V” and “UV,” ASME Section VIII, air/gas “UV” National Board certified. These valves are suitable for use on steam boilers and generators, reciprocating or rotary, portable or stationary air/gas compressors, intercoolers, and aftercoolers. Also for pressure vessels containing steam, air, or non-hazardous gas and on pressure-reducing stations.
Most popular related searches
- Model 6010: Side outlet. Full nozzle design with bronze/brass trim.
- Model 6021: Same as model 6010 with Teflon® (PFA) disc insert.
- Model 6030: Same as model 6010 except stainless steel trim (nozzle and disc).
- Model 6182: Top outlet. Full nozzle design with bronze/brass trim.
- Model 6283: Over-sized side outlet. Full nozzle design bronze/brass trim.
- O-ring seats are available for exceptional leak-free performance, reduced maintenance cost, multiple cycles with tight shutoff, improved seating integrity
- Wide hex on valve nozzle provides wrenching service clearance for easy installation
- Grooved piston model disc reduces sliding area and friction
- Dual control rings offer easy adjustability for precise opening with minimum pre-open or simmer and exact blowdown control
- Pivot between disc and spring corrects misalignment and compensates for spring side thrust
- ASME Sections I and VIII
- Pressure and temperature limits vary with service — see specifications sheet
- V Stamp, UV Stamp
- Air
- Gas
- Steam
