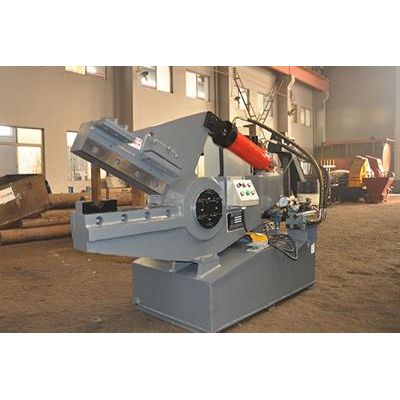

- Model CCD-63 - Alligator Catalytic Converter Decanner Shear



The DeCanning of catalytic converters, containing ceramic honeycomb bricks, implies opening the converter in order to separate the ceramic brick from the steel can. This operation is done by hydraulic shear. Alternative processes include a plasma cutter for big catalytic converter and DPF (Diesel Particulate Filter). Whatever the process used, make sure to pay proper attention to dust collection and safety.

  • Shearing force (kn) : 630
  • Press force (kn) : 105
  • Shearing speed (times/min) : 14~25
  • Max. blade opening (mm) : 320
  • Blade length (mm) : 600
  • Total power (kw) : 7.5
  • Weight of machine (kg) : 2200
  • Overall dimension (mm) : 2100*800*1550
