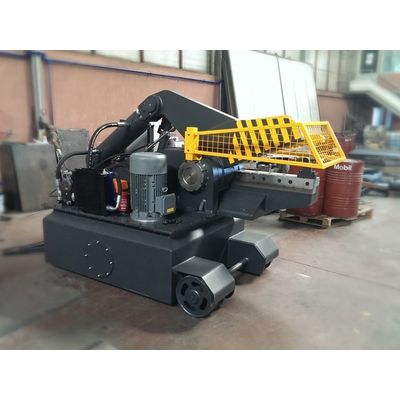

AYMAS - Model HM 82 -Alligator Scrap Shear
All electric-electronic material will be from SCHNEIDER and SIEMENS Brand. Machine will be under AYMAS Makina San. Ve Tic. Ltd. Sti. Guarantee for one (1) year. The cylinder rods, which are especially “hard chrome plated” for resistance against any damage, are induction hardened in order to maintain the maximum strength. The “Off-The-Shelf” equipments used in the electric and hydraulic systems are from worldwide known reputable brands and comply the CE European standards. The body of the machine is constructed from “DIN St52” material. After welding they are stress relieved and sandblasted before painting.
SEE THE TECHNICAL DESCRIPTION BELOW
Electric Motors: 22 kW
Machine Weight: appx 6.000 kg
Cutting Speed: 6-8 cuts/min
Blade Length: 820 mm
Max. Working Pressure: 250 bars
Cutting Force: 125 tons
Machine Dimensions (Width x Length x Height):1.500 mm x 3.000 mm x 1.500 mm
