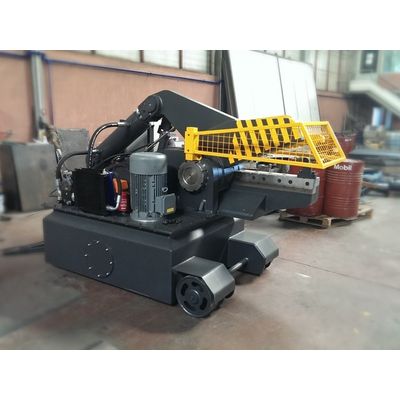

AYMAS - Model HM 32 -Alligator Scrap Shear
FromAymas Makina
All electric-electronic material will be from SCHNEIDER and SIEMENS Brand. Machine will be under AYMAS Makina San. Ve Tic. Ltd. Sti. Guarantee for one (1) year. The cylinder rods, which are especially “hard chrome plated” for resistance against any damage, are induction hardened in order to maintain the maximum strength. The “Off-The-Shelf” equipments used in the electric and hydraulic systems are from worldwide known reputable brands and comply the CE European standards. The body of the machine is constructed from “DIN St52” material. After welding they are stress relieved and sandblasted before painting.
Most popular related searches
Feature/Value
- Blade Length: HM 32 Scrap Shear
- Cutting Speed: 13 - 15 cut/min.
- Cutting Force: 56 ton
- Cylinder Diameter: Ø120/Ø63mm
- Working Pressure: 160 bar
- Electric Motor Power: 7,5 kW
- Machine Weight: 700kg
- Machine Dimensions: 92,5cm x 126cm x 121cm
