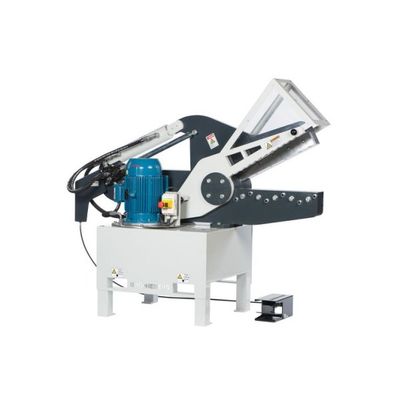

Bronneberg Forfex - Model 600 -Alligator Shear
The Bronneberg Forfex-600 alligator shear is equipped with 600 mm blades. This shear is designed to easily clean car radiators and other aluminium and copper coolers. Furthermore, this Bronneberg alligator shear is the ideal machine when it comes to cleaning a huge diversity of light and medium sized non-ferrous materials. Moreover, this powerful shear can be used for shearing ferrous materials like reinforcing bar and mild steel round bar too.
This maintenance and operator friendly shear is equipped with a mechanically adjustable hold-down clamp in combination with a safety guard over the cutting head. The hold down clamp prevents material from kicking back and therefore guarantees maximum operator safety.
The shear head is operated by a mechanical foot pedal for single cutting. The opening of the shear head can be adjusted by simply moving the end switch. To maximise the operator safety, the shear head moves back to its starting position immediately when the operator removes his foot from the pedal. Continuous cutting cycles are also possible if the operator keeps pressure on the pedal.
Visit our website for more information!
- Power pack: 400 Volt - 7,5 kW
- Cutting capacity: Ø 40 mm (St 37)
- Blade length: 600 mm
- Max. blade opening: max. 302 mm
- Dimensions: 1.950 x 700 x 1.530 mm
- Weight: 950 kg
