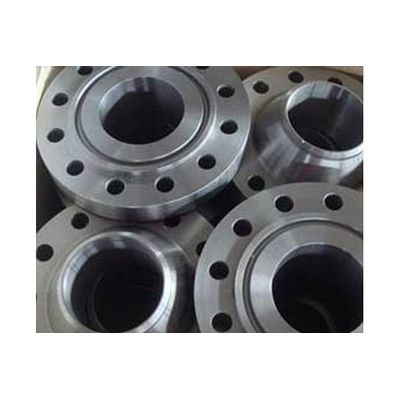

REGAL - Model ASME SA 182 Grade F5 -Alloy Steel Flanges
The standards vary as ASME B16.5, B16.47, B16.48 and so on. The A182 F5 Blind Flange is a general type that is used to close a pipeline. The blind flanges can either be welded or be fitted with some bolts and nuts. There are temporary and permanent flange connection types. The F5 Chrome Moly Pipe Flanges are made up of carbon, manganese, silicon, phosphorus, sulfur, chromium and molybdenum. The 4-6% chromium in the composition makes the ASTM A182 Grade F5 Lap Joint flanges more corrosion resistant to the acids and caustic solutions. There are different types of flanges based on the face type such as the flat face, raised face and the ring type joint. The ASTM A182 Gr F5 WNRF Flanges are welded neck raised face flanges.
The raised face allows for much grip and the welded neck is useful to keep the pipe inside the flange during welding. The sa182 f5 material properties allow the flanges to have 275MPa minimum yield strength and 485MPa minimum tensile strength. Regal Sales Corporation is a leading manufacturer and supplier of the different types of flanges such as the ASTM A182 F5 Slip on Flange and other types. Please feel free to contact us for more information on the different types of flanges such as the Alloy Steel ASTM A182 f5 flanges and the pricing.
- Standards : GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN
- Pressure Rating ANSI : Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600,
- Pressure Calculation in DIN : 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6
- JIS : 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K,
- UNI : 10Bar 16Bar 6Bar 25Bar 40Bar
- EN : 6Bar 25Bar 40Bar 10Bar 16Bar
- Most common Types : Threaded / Screwed / Forged / Plate
- Production technique :
- Forged, Heat treated and machined
- Shapes and Types we produce : Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF)
- Test : Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector
- Equipment : Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc
