Piyush - Model ASTM A234 WP5 -Alloy Steel Pipe Fittings

Piyush Steel is the customer-focused industry that is involved in making and offering Alloy Steel WP5 Pipe Fittings. The product is engineered with the fullest perfection and it has thus become an excellent solution for various industrial applications. We are a reliable manufacturer, supplier as well as exporter of these pipe fittings. Our clients can acquire this pipe fitting from us at the different specification, wall thickness, dimensions, types, bending radius, size. It is also offered at custom-made specifications to the various industrialists based on their needs.

Our Alloy Steel WP5 Pipe Fittings are found used in several applications. It is namely pharmaceuticals, seawater equipment, condensers, pulp and paper, specialty chemicals, gas processing, etc. WP5 pipe fittings are widely appreciated for features such as tensile strength, ruggedly constructed, precise dimensions, hardiness, long functionality. Also, it is having resistance ability against general corrosion, stress corrosion cracking and pitting.

ASTM A234 WP5 or WP5 is the material that is used into the pressure piping system of average and greater temperature services. A234 is indicating the material properties of various alloy steel and carbon steel. WP5 is a steel grade. In it W stands for weldable, P stands for pressure and 5 is grade. Thus ASTM A234 WP5 material is alloy steel that is used for fabricating piping fittings.

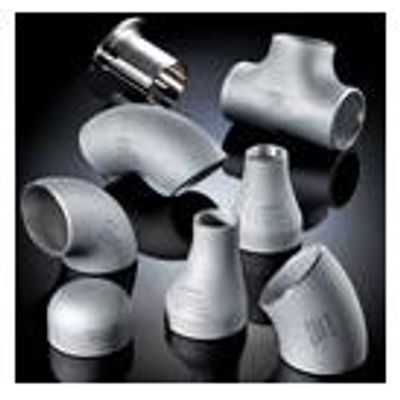

The customary product of WP5 piping fittings is including cross, elbows, reducers, tees, caps, etc. There are welded and seamless WP5 piping fittings available. The seamless pipe fittings are designed using steel piping and caps are designed using plates. The bigger sized piping fittings are designed in welded and pieces together.

The method of constructing the Chrome Moly A234 WP5 Seamless Pipe Fittings are termed as wrought. Here it means that it is forged or is casted. ASTM A234 WP5 reducers, elbows are designed using steel piping and caps are designed using plates. The bigger sized fittings are designed in pieces and are together welded. Also, they are designed from WP5 forgings.

Several kinds of pipe fittings are available that is used in the plumbing system for various functions and purposes. However, pipe fittings are used into the plumbing system for joining the pipes of same sizes. It is for smoothly regulating the flow of substances like liquid, gas and solid in some cases. These pipe fittings are made up of various metals such as alloy steel, brass, etc. Different kinds of pipe fittings available are valves, cap, couplings, etc.

Markings On The Alloy Steel WP5 Butt weld Pipe Fittings

The full identification of the pipe fittings should be continuously marked down its whole length, including :

•   Rating Designation
•   Material Designation
•   "WP" in grade symbol
•   Grade
•   Schedule number or nominal wall thickness
•   Heat Code
•   Manufacturer’s Name or Symbol

• Specification : ASTM A234 / ASME SA234
• Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
• Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
• Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
• Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
• Type : Seamless / Welded / Fabricated

• Petrochemical Industry
• Chemical Industry
• Oil and Gas Industry
• Pulp & Paper Indusry
• Power Plant Industry
• Food Processing Industry
• Pharmaceuticals Industry
• Energy Industry
• Aerospace Industry
