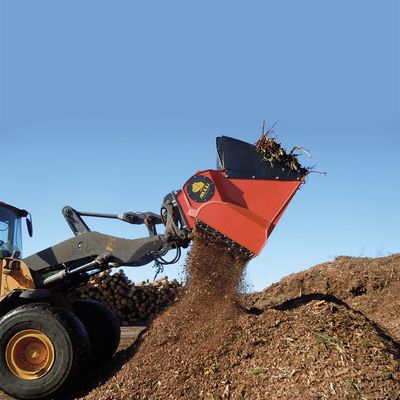

ALLU - Model Transformer D series -Screener Crusher
ALLU D SERIES SCREENER CRUSHERS FOR EARTHMOVING. With ALLU Transformer D series screener crusher, you can screen, sort, crush, pulverize, aerate, blend, mix, separate, feed and load materials – all in one step operation. Everything from aerating compost, pipeline padding, primary on-site screening and processing construction material. transforms the way you work. The range of materials it can process is wide; topsoil, black top and dirt, excavated and waste soil, contaminated soil, clay, peat, bark, compost, biowaste, glass, aggregate, rubble and several other materials.
Efficient – process materials fast and efficiently in one step
Mobile – converts your base machine into a mobile processing plant
Greener – smaller carbon footprint and less transportation costs
Plug & play – simple installation to excavators and wheel loaders
Changeable blades – change between different fragment sizes and applications
Self-cleaning design – works well even with wet materials
VERSATILE PROCESSING
The unique ALLU TS structure enables three different fragment sizes with the same unit. Fragment size estimation is based on screening comb distance. It is a quick and easy way to change from one screening job to another.
SELF-CLEANING DESIGN
Due to ALLU TS’s Self-Cleaning Design, it allows the best possible capacity even with wet materials. We call this innovative design, a Non-Clogging Structure.

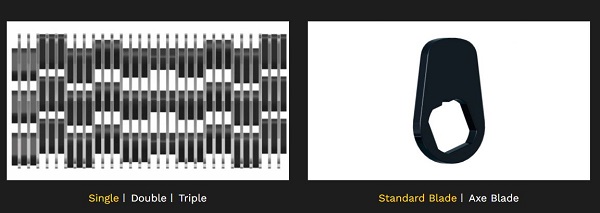

BLADE THICKNESS
8 mm
16 mm
25 mm
35 mm
ALLU TS-structure features a variety of blade thicknesses, which makes the TS-structure perfectly suited to a multitude of screening and mixing tasks. These blade thicknesses determine the fragment size of the end product.
EXCAVATOR: 12 – 28 t
WHEELOADER: 6 – 14 t
VOLUME: 0.52 – 0.66 m3
OIL FLOW: 70 – 120 LPM
WEIGHT: 1130 kg
- DEMOLITION
- EXCAVATION
- CONSTRUCTION
- UTILITY AND ROAD WORKS
- WASTE RECYCLING
- ASPHALT RECYCLING
- WASTE ROCK HANDLING AT QUARRIES
- CONCRETE PIPE INDUSTRY
- TOPSOIL SCREENING
