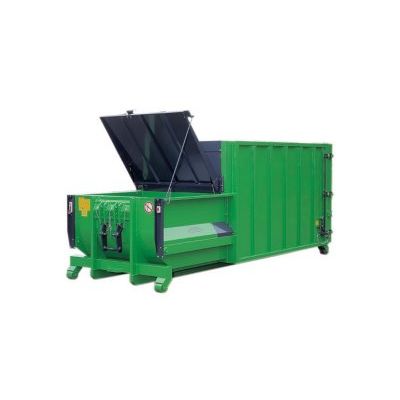

Bergmann - Model APB 606 -Alpha-Pack-Bin for Roll-Off Skip Loaders
Special charateristic of the Bergmann Alpha-Pack-Bins are very high compaction results - due to the linear position of the compaction cylinder and the continuous filling in a large and easy-to-feed loading aperture, even if the container is currently in the compaction mode.
Most popular related searches
skip loader
oil level monitoring
stormwater runoff
level monitoring
level indicator
drain valve
waste handling
waste stream
press container
stormwater
Thanks to the pendulum roof developed by BERGMANN, a trouble-free emptying is guaranteed. A standard feature of the Alpha-Pack-Bins is the automatic self-cleaning of the patented BERGMANN throw-over blade system. No manual, difficult and unhygienic cleaning of the compacting piston is required.
BERGMANN Alpha-Pack-Bins of the series 606 are available for roll-off skip loaders and have a low operating noise level. They have a well-developed design and technology and convince because of their low-maintenance operation.
- Mobile waste press container for cardboard boxes, paper and foils
- Roll-off skip loader version
- Electrohydraulic drive
- Linear arrangement of the compaction cylinders
- Self-cleaning throw-over blade system (no cleaning works required)
- Modular structure for flexible application and rigging possibilities
- Special designs per customer’s request
- Illustration of the self-cleaning pendulum blade with throw-over blade system in front position. During the compactor stroke and the following return stroke, the entire filling area is available for continuous filling.
- Illustration of the self-cleaning pendulum blade with throw-over blade system in extreme rear position. Thanks to the throw-over blade system, the material thrown in during the preceding compactor stroke is thrown in front of the compacting piston.
- BERGMANN`own development with pendulum roof, patented throw-over blade system and many years of experience
- Ideal for compacting re-usable material like paper, cardboard, foils, etc.
- The APB does not have cleaning ports, because it is self-cleaning due to the patented throw-over blade system, which saves labour costs for cleaning. Unhygienic activities are no longer necessary
- Huge loading aperture (approx. 1,700 x 2,000 mm)
- Filling edge = filling area The waste need not be thrown above the cylinder area
- The machine can be continuously feeded thanks to the patented BERGMANN throw-over blade system even if the compacting piston is in the return stroke.
- Highest compaction due to the typically linear arrangement of the compaction cylinders made by BERGMANN is proven. Thus, the waste is compacted to a minimum of the original volume
- Comfortable operation by clearly arranged push buttons

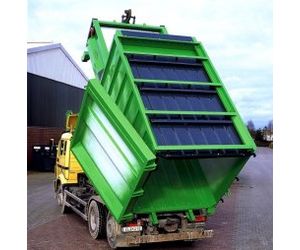

- Trouble-free emptying through pendulum roof
- Negligible operating noise
- Reduction of disposal costs of up to 75%
- Long service life of the machine through rare emptying = high availability on site
- Drastic savings by reducing the number of disposal journeys to a minimum
- Lowering of personnel costs for waste handling
- Minimising the utility space for waste storage. Thus, saving on storage costs and storage areas for conventional containers
- Can easily be expanded due to its modular structure. Thereby you have a simple customisation to various locations
- The highest quality standard for years
- Well-developed design and technology on the basis of many years of experience
- High, fast and available for spare parts for many years, guaranteed for 15 years!
- Worldwide service network
- Huge loading aperture (approx. 1,700 x 2,000 mm) with a volume of 4.5 m³
- Enormously high processing capacity of 2.00 m³ per working stroke
- Bin with pendulum roof for trouble-free emptying
- High compaction force of 345 kN with APB 606 SN 20
- Press plate guiding system with 100% compaction force over the full stroke length
- High filling weights of, on the average 4.5 tons cardboard boxes in the APB 606 SN 20 and more
- Compactor stroke in only 36 seconds
- Durable, purely hydraulic drive unit with maintenance-free central hydraulic block
- Compaction chamber and press plate constructed from extremely high steel strengths. Bottom of the loading aperture made of high-quality and wear-resistant steel
- Front and rear pick-up hook variable in height for adjustment to all standard roll-off skip loaders
- Laterally fastened door with 3 central locks via easy-to-serve ratchet catch
- Pendulum claws on the break edge and the large immersion depth of the compacting piston avoid that the waste streams back

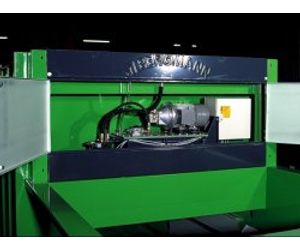

- Easily accessible hydraulic power pack above the compaction chamber through wing doors
- Great stability with economic net weight
- Machine TÜV/GS and CE-certified
- Skirting protection of the control elements for protection against damages
- Container is continously welded
- Circulation of the material due to special circulation edges at the discharge opening results in a high volume utilisation of the container
- Completely “Made in Germany” by qualified and experienced staff
- Pick-up-system, pluggable and turnable in the front, thus fast and easy adjustment of the pick-up height by means of bolts on various unwinder types
- Screwable pick-up-system the rear, thus pick-up height of 1,450 mm and 1,570 mm possible
- Differential circuit for quick stroke periods
- Pendulum roof for trouble-free emptying
- Self-cleaning throw-over blade
- Drip tray with drain valve
- Central storm-water runoff
- Autotimer
- Oil level indicator and oil level monitoring
- Overload protection
- Working hour counter
- Unproblematic retrofitting with a lid covering the loading aperture
- Hydraulically controlled and, thus, durable reversing valve
- 2 front rollers and 2 rear rollers
- ¾ full and/or 100% full signal
- Increased lateral walls in various designs
- Full signal via GSM Module to you or disposer
- Double hydraulic pump for even quicker stroke periods
- Manually or hydraulically operated lid covering the loading aperture in the back or laterally fastened (protects against filling by unauthorised persons and the penetration of rain water)
- Rubber seal of the lid (reduces odors and provides watertightness)
- Lift-tipping-device, integrated for pivoting and/or comb lifting system (lifts the waste bin and tips the contents into the compactor)
- Remote control via cables
- Photo electric cell in the filler area (automatic start of the machine)
- Fire fighting point
- Connection for draining
- Flap covering the control panel, lockable against vandalism
- and many more
- ask for special versions
Everywhere, where dry re-usable material accumulates, as in:
- Supermarkets
- Trade
- Industry
- Printing houses
