TIMET, LLC
TIMET - Alpha Spectrometer
FromTIMET, LLC

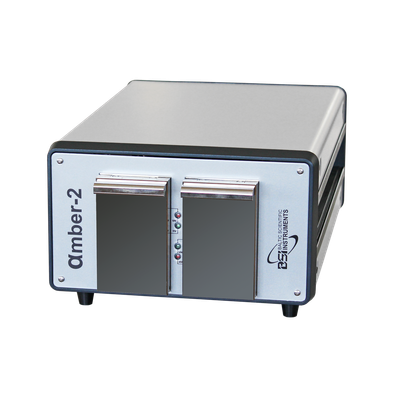

The Alpha Spectrometer αmber-2 is expertly crafted for converting alpha-particle energies into electrical signals. It efficiently amplifies, filters, and transforms these signals into spectral lines, facilitating their acquisition for thorough spectral analysis. This bench-top device is designed with two measurement chambers, allowing for the concurrent analysis of up to two samples. Each chamber is equipped with an alpha particle detector, a pressure sensor, and a preamplifier to enhance the signals received from the alpha detector. This configuration ensures high precision and reliability in detecting and measuring the intensities of spectral lines. These features make the αmber-2 an essential tool for advanced radiation monitoring and nuclear measurements, serving the needs of laboratories and technical experts in these fields.Most popular related searches
alpha spectrometer
advanced radiation monitoring
benchtop device
spectral analysis
pressure sensor
spectrometer
benchtop spectrometer
radiation monitoring
sampling chamber
particle sensor
Alpha Spectrometer is designed to transform alpha-particle energies into electrical signals, their amplification, filtration, and transformation into spectral lines and their acquisition for spectral analysis with determination of the intensities of spectral lines. Bench top alpha spectrometer α2 contains 2 measurement chambers, which allows for simultaneous analysis of up to two samples. Every Alpha spectrometer chamber includes alpha particle detector, pressure sensor and preamplifier of signals from alpha detector.
General
- Device management using specialized software installed on a PC
- Built-in multi-channel analyzer
- Sample diameter up to 50 mm.
Precision
- Thin detector input window
- High energy resolution
- High registration efficiency of alpha- radiation
- Ability to install silicon detectors up to 1200 sq. mm
Reliability
- Adjustable distance from sample to detector 4 – 48 mm.
- Stainless steel vacuum chambers
- Automatic shutdown of high voltage when the pressure in the vacuum chamber decreases
