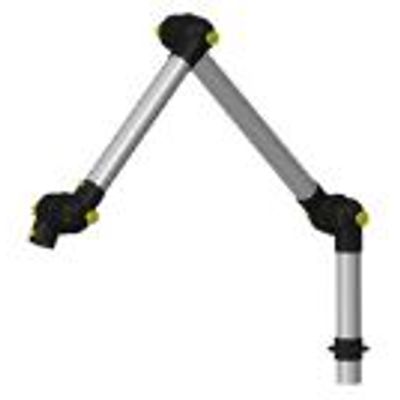

Alsident - Model 50 AS -Table Mounting Antistatic Extraction Arm

All components RoHS-compatible. Design: Extraction arm for mounting on table. Working range 445 - 1125 mm. Recommended airflow 45 to 85 m³/h.

Most popular related searches

Diameter of tube: Ø50 mm
Tubes made of chromated TCP Aluminium to assure permanent conductivity
Joints made of conductive, shatterproof and chemical resistant polypropylene (PP)
All O-rings maintenance free and conductive
Integrated valve. When in an open position out of the flow path to maintain the maximum amount of flow
All threaded stays, springs and thumbscrews made of acid-proof stainless steel (AISI 316L)
All hoods can be provided with a protective netting (accessory) to reduce the risk of extracting foreign objects
Approved for ESD-areas according to IEC 61340-5-1:2016
The extraction arms are equipped with an earth wire with a resistance of 1MΩ
Dismantling of the arm without tools for cleaning
