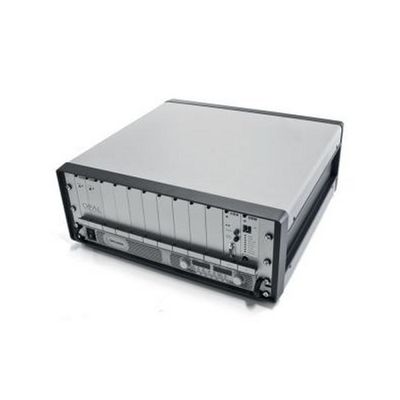

ALT OPAL - Borehole Data Acquisition System
The OPAL acquisition system is based on a modern electronics design in which software control techniques have been used to the best advantage. The hardware incorporates the latest electronic components with embedded systems controlled via the specially developed LOGGER SUITE windows interface program
Most popular related searches
borehole data acquisition
data acquisition system
borehole data
data logger
scientific data
borehole
telemetry system
telemetry
borehole logging data
borehole logging
- USB interface, runs on any PC compatible notebook.
- Windows operating system platform.
- Wireline and winch flexibility - runs on coax, mono - or multi-conductor wireline.
- High speed up hole telemetry system and automatic telemetry tuning.
- Improved telemetry performance on long single and multiconductor wirelines when used in conjunction with the latest generation of ALT/MSI toolsNew Equalizer and Train processes.
- Totally software controlled using Logger Suite softwareReal-time data display and printing.
- Very easy to use, with graphical user interface, self-diagnostic features, configurable through files, minimal user input required.
- Real-time logging in WellCAD.
- Shaft encoder flexibility – compatible with any 12V or 5V AB shaft encoder, and configurable for any combination of wheel-shaft PPR.
- Wireline tension monitoringTension adapter compatible with any tension sensors-gauges.
- Up to 8 analog inputs to collect information from external sensors.
- Rugged rack mount chassis construction, heavy duty, and fault
- tolerant electronicsModular design for ease of maintenance.
- Multi tool family capability by the means of dedicated tool specific adapter modules.
- “Scientific Data Systems Inc - Warrior” connectors-wiring compatibility.
- Dimension (W x L x H) 52 x 50 x 21 cm 20.5 x 19.7 x 8.3 in
- Weight 21.5 kg (46.3 lbs)
- Input Voltage 100-240 VAC, 50-60 Hz inverter compatible
- Tool Power Up to 400V / 1.3A - (750W)
- PC Connection High Speed USB
- Logging Cable Standard single, multi-conductor and coax
- Tools / Telemetry ALT Standalone Tools, ALT/MSI QL Probe line, KUSTER tools, PROBE1 tools, other third party tools on demand
- Upgradeability User upgradeable firmware
- Software Logger Suite V 12.1 or later
