Mag-Instruments - Alternating Field Demagnetizer

SHARE
Mag-Instruments offers an array of advanced instruments designed for precise magnetic measurements and manipulations suitable for various scientific applications. The Variable Field Translation Balance (VFTB) is engineered for meticulous magnetic field measurements, facilitating detailed studies of magnetic materials. Complementing this, the Portable Spinning Magnetometer (PSM) allows for comprehensive magnetometric analysis in laboratory settings or fieldwork, providing versatility in demanding environments. Their Alternating Field Demagnetizer is adept at removing residual magnetism from samples, crucial for resetting magnetic histories before detailed analysis. These instruments, including the innovative Bacteriodrome and Magnetodrome for specialized magnetic studies, represent a robust suite of tools essential for research institutes focusing on materials science and geophysics, emphasizing reliability and precision.
Most popular related searches
magnetic field monitoring
sample holder
material science
core sampling
sample manipulation
field monitoring
sample handling
portable magnetometer
field instrument
magnetometer

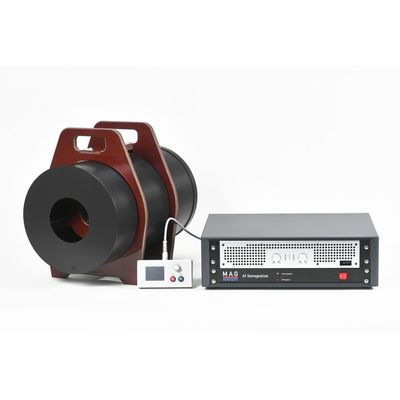

A self-contained tabletop Alternating Field Demagnetizer with peak field 150mT (customizable) and minimum settable field 0.1mT. The instrument can be operated through an intuitive LCD user interface embedded in the control unit or from a connected PC. The interface apart from setting a peak field allows for control of the ramp step in uT. Moreover, information about the temperature of the coils and power stage, remaining operation time etc. is continuously displayed on the LCD, so that user has an insight into present state of the system.

The sample manipulation can be done either manually with a specially designed sample holder allowing for orthogonal orientation of three 1-inch core samples or two 23mm cubic samples or with a specially designed tumbler.

Property : Value
Demagnetization peak field : 0.1 – 150 mT (can be higher upon request)
Sample handling : manual / tumbler
Operation frequency : 100-300Hz
Weight : ~ 63kg
Shielding layers : 3
Demagnetization time : 1 – 80s
