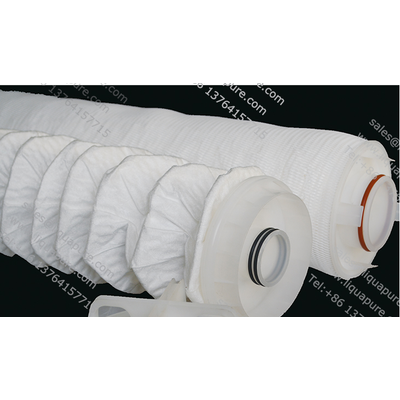

Liquapure - Model 3M -Alternative High Flow Cartridge Filters
Alternative 3M high flow cartridge filters with 6.5” diameter and length up to 60”. The single piece filter media, radial pleated technology Maximize the filtration area within certain filter length. This structure enlarges the dirt holding capacity, extend the service life and save cost.
Most popular related searches
high flow cartridge filter
high flow filter cartridge
cartridge filter
filter cartridge
reverse osmosis desalination
desalination chemical
cooling water
cooling water technology
desalination
water cooling
Dimensions
- Outer Diameter: 6.5” (165mm)
- Length: 10”, 20”, 40”, 60”,
Materials of Construction
- Core/Cage: Polypropylene
- Media: Polypropylene
- O-rings: EPDM, Buna, Silicone, Viton
Operating Parameters
- Max. Temperature: 80?
- Max. Differential Pressure: 3.5 bar @ 21?
- Recommend Change-out:2.4 bar
- Max. Flow Rate: 40”@72 m³/h, 60”@110 m³/h
- Recommend Flow Rate: 40”@35m³/h, 60”@52 m³/h
- Horizontal pleated technology
- Superior filtration area for high flow rate
- High dirt holding capacity for long life and efficiency
- Less footprint, easy change-out
- Pre-RO
- Desalination
- Chemicals
- Beverage and Food
- Cooling water
