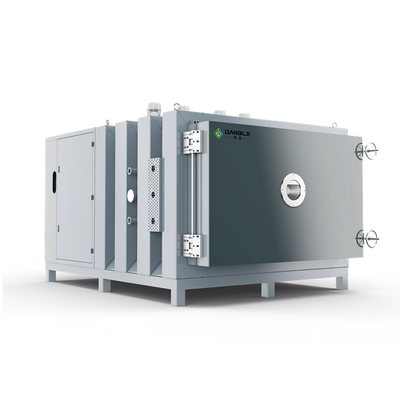

Danble - Model DBTL-150L -Altitude Test Chamber
Altitude Test Chamber, also known as the High Altitude Environment Simulation Test Chamber, is a crucial piece of chamber designed to simulate low - pressure environments similar to those at high altitudes. It plays a vital role in various industries, especially in aerospace, electronics, and automotive, by evaluating the adaptability and reliability of products under such harsh conditions. Altitude Test Chamber | Temperature & Vacuum Environmental Testing Equipment for Aerospace & Electronics.
Most popular related searches
altitude test chamber
test chamber
chamber test
environmental testing system
oil temperature control
digital temperature controller
stability chamber
automotive testing
pressure reducer
noise control
- Pressure Range: 0.1kPa to ambient pressure e(rapid depressurization to 0.5kPa in ≤45mins).
- Temperature Range: -70℃ to 150℃（±0.5℃ stability).
- Chamber Volume: ACustomized from 80L to 4500L, or more bigger size.
- Depressurization Rate: ≤10kPa/min（adjustable).
- Vaccum System: Magnetic leviattion pump for noise reduction (＜75dB) and oil-free operation.
- Temperature Control: Siemens PLC with ±0.5℃ accuracy and rapid heating/cooling ( 1-3℃/min).
- Safety Features: Overpressure/ overheating protection, vaccum leakage detection, and real-time monitoring.
- Internal Volume: 150L
- Internal Dimensions: 500×500×600（mm）
- Low Temeprature Range: A: 0 ℃ B: -20 ℃ C: -30 ℃ D: -40 ℃ E: -55 ℃ F: -70 ℃
- Pressure Range: 100kPa to 0.5 kPa
- Humidity Range: -20 % ~ 95% RH( 100kPa)
- Temperature Fluctuation: ≤±0.5℃（100kPa)
- Temperature Uniformity: ≤±2℃（100kPa)
- Heating Rate: 1~3℃/min
- Cooling Rate: 0.7~1℃/min
- Pressure Reducing Rate: ≤15s (75.2 kPa~18.8kPa) ≤30min(100kPa~1kPa)
- Power: 3 Phase 380V, 50Hz
- Standard Reference: JESD22-A106B; GJB-150A; MIL-STD-810G; MIL-STD-202G,; GB/T2423.1; GB/T2423.2; GB/T2423.3; GB/T 5170.2; IEC 60068
- Aerospace: Validate aircraft components, satellite materials, and propulsion systems under vacuum conditions;
- Electronics and Eletrical Products: Validate PCBs, semiconductors, and displays under thermal cycling;
- Automotive: Tests battery components, ECUs, senosrs and interior materials for extreme climates;
- Aerospace and Defense: Certify chamber for high-altitude temperature stress;
- Industrial and Consumer Products: Assess thermal stress resistance of mechanical parts and consumer electronics under various climatic conditions.
- Medical Devices: Ensure reliability of diagnositc tools in fluctuating environments.
