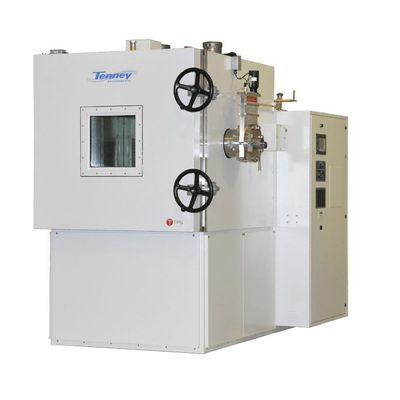

Tenney Strat - Altitude Test Chamber

We are confident that our solid altitude test chamber construction and precise operating systems will provide the exacting performance and high degree of reliability for your altitude testing needs.

Performance

• -70°C to +177°C, +0.3° after stabilization
• Standard altitude conditions: Site level to 100,000 Feet (8.28 mm Hg / 8.28 Torr)
• Combined temperature and altitude: 60,000 feet maximum
• Standard humidity conditions (Models xxSTR only): 20% to 98% RH

• Automatically controlled vacuum and vent valves in the Tenney Strat Altitude Test Chamber provide precise altitude conditions for consistent testing needs.
• Chamber overtemperature and product temperature protection assure safety and optimal performance.
• Compatible with multiple vacuum systems to meet your exact process requirements.
• Efficient airflow system maintains temperature for uniform testing
• Easy to use controller with latest software and technology Features
• Continuously welded, stainless steel, vapor-tight interior liners

• Vertical-down recirculating conditioning stream
• Highly efficient cascade refrigeration system with two semi-hermetic compressors
• Open-air nichrome wire heater elements
• Capacitance type absolute pressure transducer for pressure measurement
• Model T5STR- Non-corroding, vapor-injection humidity system with low-water protection
• Air pressure alarm output
