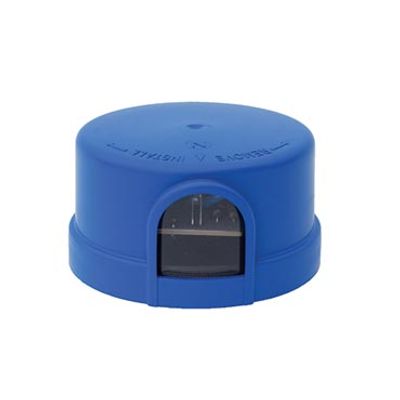

Altran Magnetics - Model E7 Series -Photocells
FromAltran Magnetics
E7 series photocells are ideal for roadway and street lighting applications requiring multi-volt operation, durability, endurance, and low cost.
Most popular related searches
- High Temperature Resistant Housing
- Interlock Design
- Multi-Volt Operation
- IR Filtered Photo Transistor
- Meets or exceeds ANSI C136.10
- Design Life at Rated Load: 20,000 Cycles (20+ years)
- High Performance
- Low Cost
- 10 Year Product Warranty
- UL/CSA Listed (CUL)
- RoHS Compliant
- Enclosure: Designed to meet ANSI C136.10Dimensions: Approx. 3.26” (83mm) dia x 1.77” (45mm) height (contacts not included).
- Power Consumption: Less than 0.5 Watts (avg.) at 120VAC
- Control: DC electromagnetic switch type exceeds 20,000 ON/OFF operations per ANSI C136.10
- Temperature Range: -40°C to +65°C at 96% RH
- Light Sensor: Non-drifting photo sensor
- Relay Rating: 30 Amp general purpose relay
- Load Rating: 1000 Watt Tungsten 1800 VA
- Cover: High impact polypropylene with UV stabilized polycarbonate window
- Base: High temperature polyester (PBT)
- Connection: 3-pole locking type with solid brass legs
- Gasket: Cross-linked polyethylene
