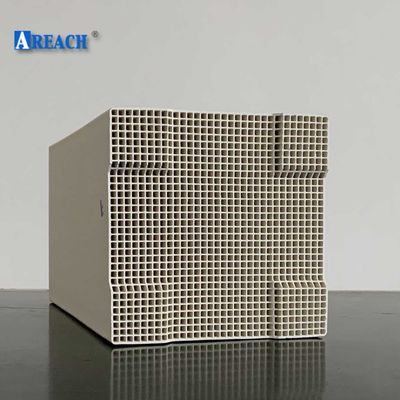

AREACH - Model 32*32 Cells -Alumina Blocks
Alumina blocks, as well as known as the honeycombs blocks (so called Ceramic regenerating agent) in some industrial applications ,is a basic types of extraordinary surface area of the heat storage media with uniform lattice structure applied in destruction of Volatile Organic Compounds (VOCs). its main purpose is to recover heat from the exhaust gas by absorbing waste heat stored in the ceramic media, thus reduce operating costs and the potential for plugging and maintenance problems. with its good media performance has been widely used in RTO equipments.Most popular related searches
VOC destruction
volatile organic compounds
thermally conductive material
honeycomb block
RTO ceramic
volatile organics
ceramic media
honeycomb ceramics
chemical oxidation
Density :2.0-2.3
water Absorption ≤ 20%
Coefficient of thermal expansion: x10-6k -1≤5
Specific Heat (20-1000℃): 900-1150:J/Kg.K
Thermal Conductivity (20-1000℃):1.5-2.0W/m.k
impact thermal resistance≥300℃/Min
Strength （ A axis）>32MPA
Compressive （ B axis）>8
AL2O3/ Alumina Oxide: 55-65%
SiO2 /Silicon Oxide :35-45
MgO:1-3
Fe2O3+TiO2 :3-5
Others<5
Low pressure loss;
Low heat expansion;
High specific heat capacity;
High specific surface area;
Low pressure drop;
Low thermal resistance;
Low operating and maintenance costs;
High heat storage;
Good thermal conductivity;
