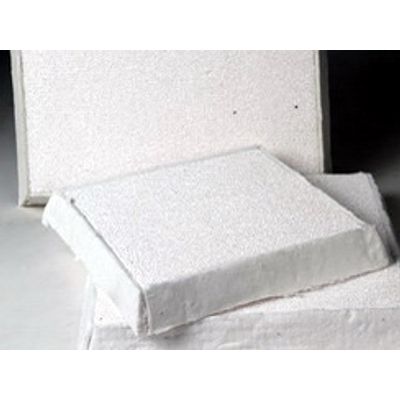

JINTAI - Model JT-CFF-AL -Alumina Ceramic Foam Filter
JINTAI Alumina Ceramic Foam Filters mainly for filtration of aluminum and aluminum alloys in foundries and cast houses . With their excellent resistance to attack and corrosion from molten aluminum, they can effectively remove inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.
JINTAI Alumina Ceramic Foam Filters are available in all common sizes: 7", 9", 12", 15", 17", 20", and 23". JINTAI offers the whole range of porosities from PPI 10 up to PPI 60 (PPI = pores per inch). Custom-made cut-to-size filters are also possible.
JT-CFF-AL is equipped with a gasket on the edges. The gasket assures the proper and tight position of the filter within the filter box. There are different types of gasket available, e.g. ceramic fiber gasket etc. Also you can choose JT-CFF-AL without gasket.
- Working Temperature: ≤1200°C
- Porosity: 80~90%
- Compression Strength
- (Room Temperature): ≥1.0Mpa
- Volume Density: ≤0.5g/cm3
- Thermal Shock Resistance: 800°C---room temperature 5 times
- Application: non-ferrous and alumina alloys, high temperature gas filter, chemical fillings and catalysis carrier etc.
